KLUS PULA Extrusion

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

440-715-5539

WE OFFER ALL KLUS ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

Mounting can be adjusted to the thickness of the shelf

Double independent lighting modes - edge and surface

ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less.

Application

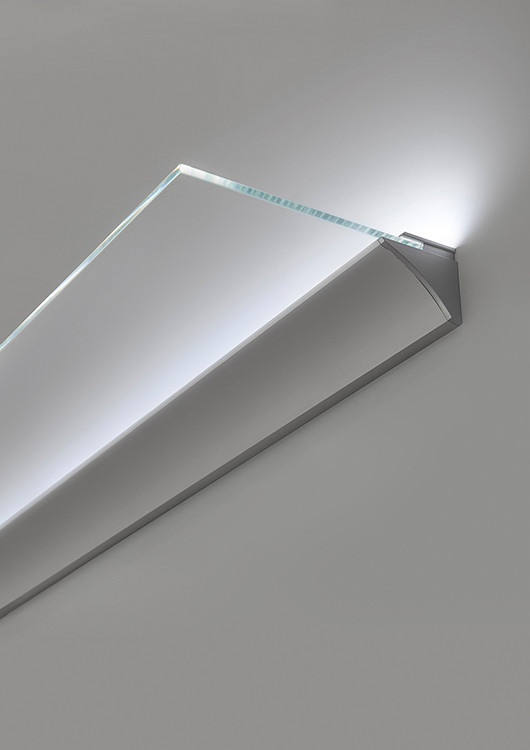

- mounting and illumination of shelves made of glass and other materials

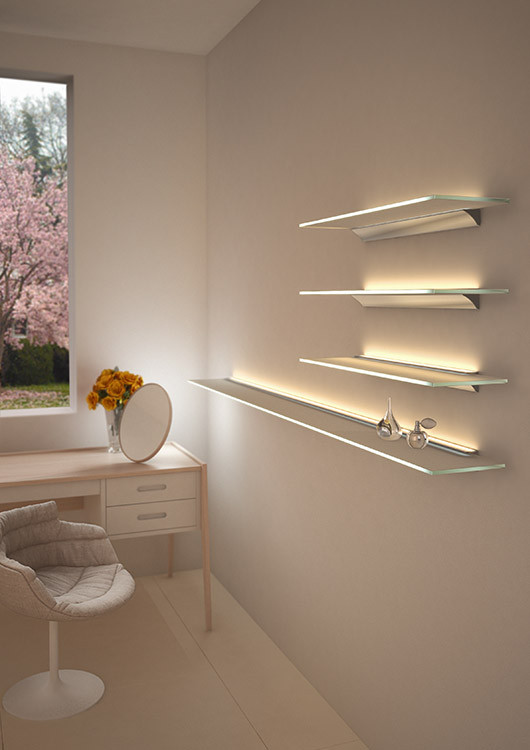

PULA extrusion can be used in architecture, interior decoration or during exhibitions.

Assembly

- on a mounting strip with screws appropriately selected for the surface

- shelf mounted in the extrusion with adjustable spacing

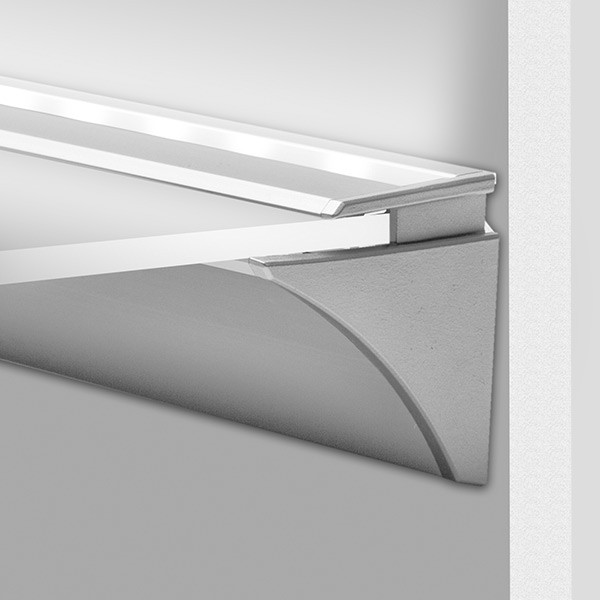

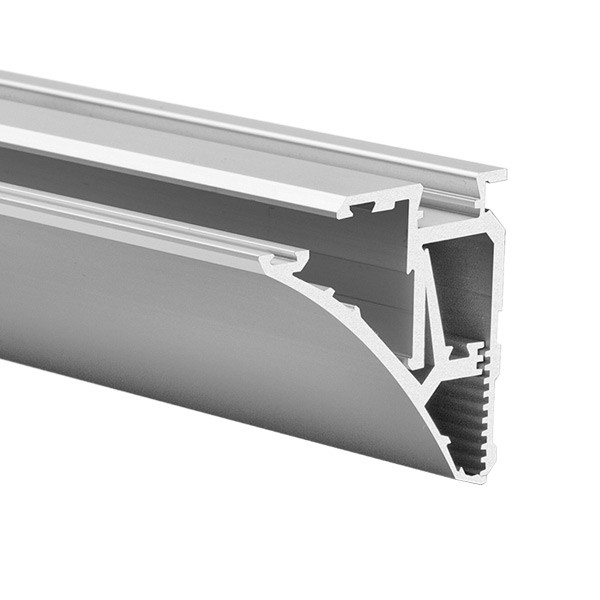

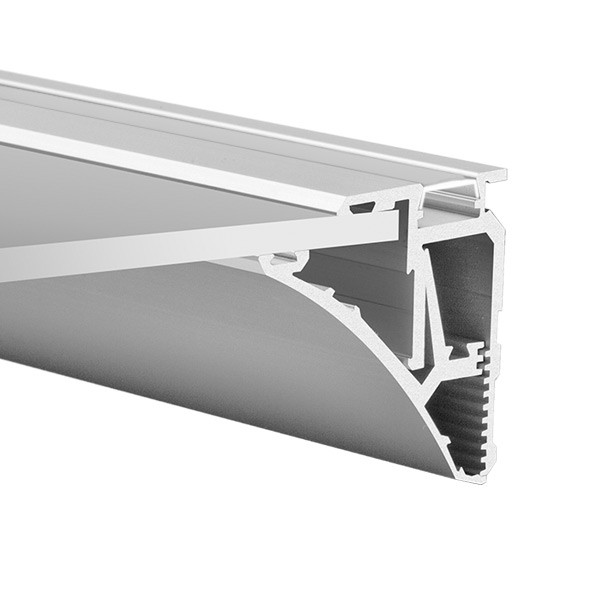

PULA consists of two extrusions: TEPULA mounting track (attached to the wall) and bent into a curved shape MAPULA extrusion, set in the mounting track. Both extrusions are connected with the ability to regulate the distance between their edges every (0.08" / 2 mm), so they can be adjusted to shelf's with thickness between (0.23" / 6 mm) and (0.78" / 20 mm). Such fixture can support weight up to 11lb on length of (11.8" / 30 cm). Maximum width of the shelf is (9.84" / 25 cm).

Additional Information

- the extrusion can also be used as a shelf attachment without backlighting

• Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.


Recessed Mount	IP20	IP67	UK Conformity Assessment	Complies with European Union Directives

PULA
EXTRUSIONS

COVERS /
LENSES

END CAPS /
ACCESSORIES

STANDARD LEAD TIMES

Lead Time May Vary Based on Product Mix / Quantities Ordered

Standard Order - No Cutting

2 - 3 Days

Custom Cuts - Extrusions, Covers or LED Tape

3 - 5 Days

Custom Builds

2 - 3 Weeks

The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.

ORDERS BELOW $200.00 are SUBJECT to a $25.00 SERVICE CHARGE

Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

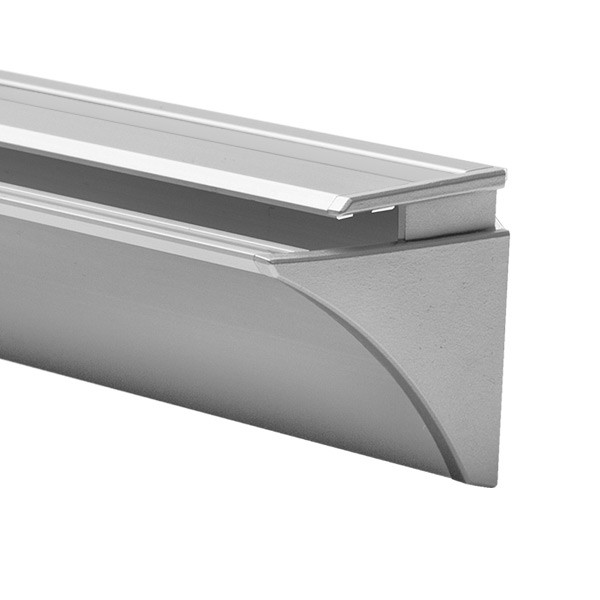

PULA Extrusion

ITEM	FORMERLY	DESCRIPTION	PRICE
A18035A_1	18035ANODA_1	39.4" / 1M Silver-Anodized Extrusion	$170.00
A18035A_2	18035ANODA_2	78.75" / 2M Silver-Anodized Extrusion	$340.00

Download for Full Specifications, Dimensions and Instructions

Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions

Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic componentsproduces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.

CLICK for PDF:

EXAMPLE

BACK to TOP

CLICK IMAGE for LARGER VIEW

COVERS / LENSES

1370

1369

17037

HS Cover
Clear

HS Cover
Frosted

LIGER-22 Cover
Frosted

ITEM	DESCRIPTION	PRICE
1370_1	39.4" / 1M HS Cover Clear	$11.80
1370_2	78.75" / 2M HS Cover Clear	$23.60
1369_1	39.4" / 1M HS Cover Frosted	$11.80
1369_2	78.75" / 2M HS Cover Frosted	$23.60
17037_1	39.4" / 1M Liger Cover Frosted	$13.80
17037_2	78.75" / 2M Liger Cover Frosted	$27.60

BACK to TOP

CLICK IMAGE for LARGER VIEW

END CAPS / ACCESSORIES

24193

24196

00802L

PULA-L MET
End Cap Left

PULA-P MET
End Cap Right

8,8x1,2 Gland

ITEM	DESCRIPTION	PRICE

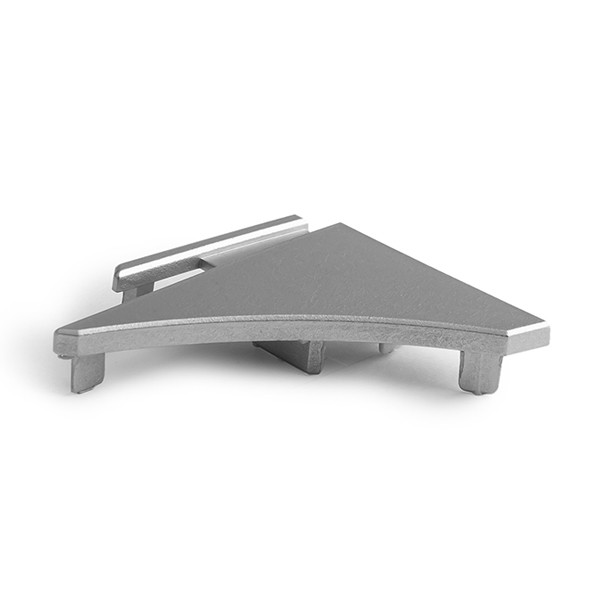

24193	PULA-L MET End Cap Left	$14.00

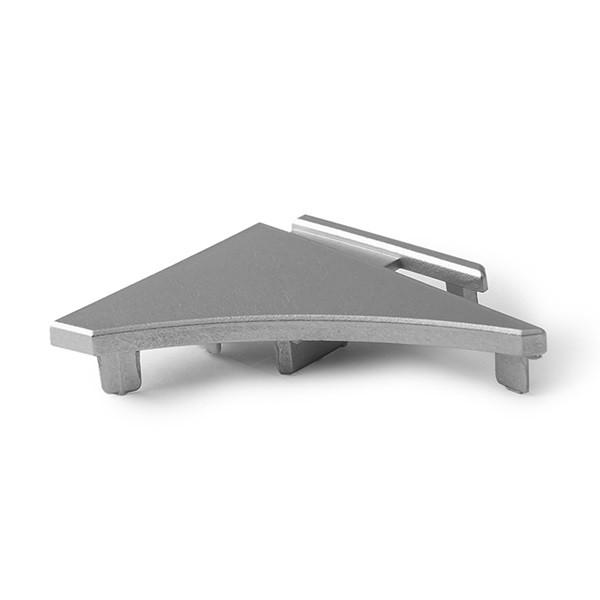

24196	PULA-P MET End Cap Right	$14.00
00802L	8,8x1,2 Gland	$1.40

BACK to TOP
