DIODE LED LINAIRE® Flex Family IP67

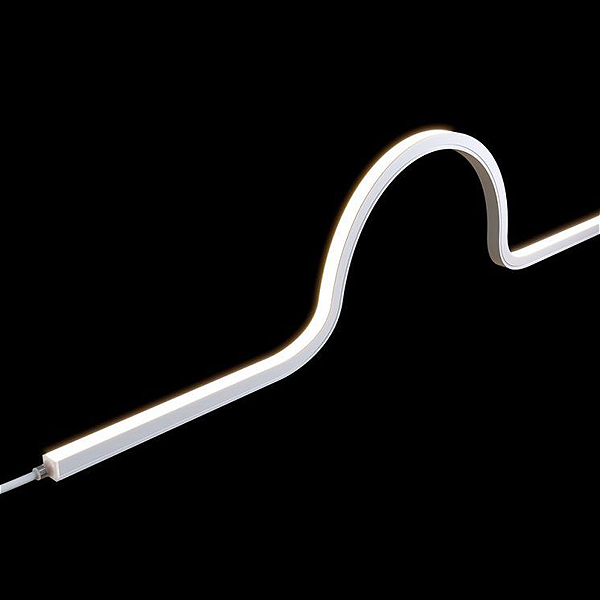

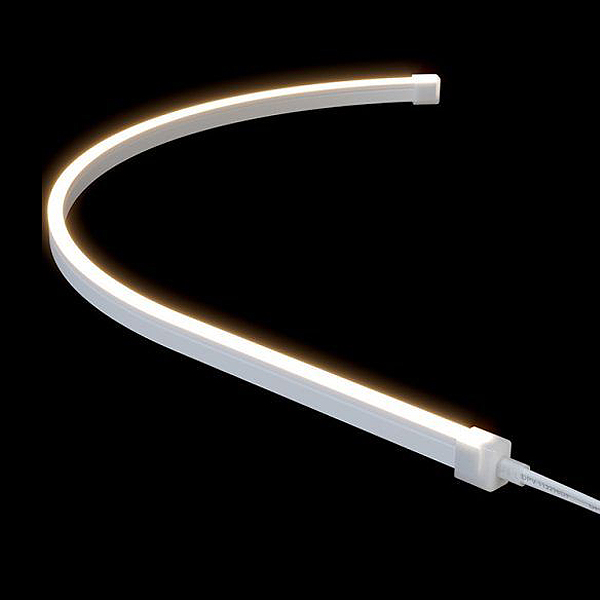

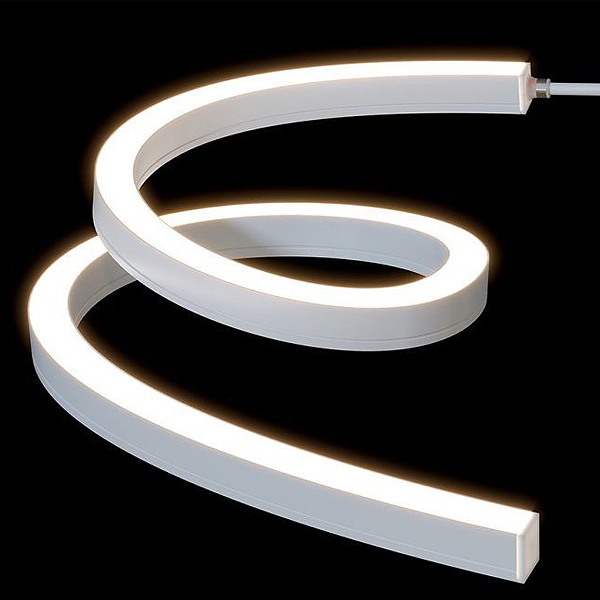

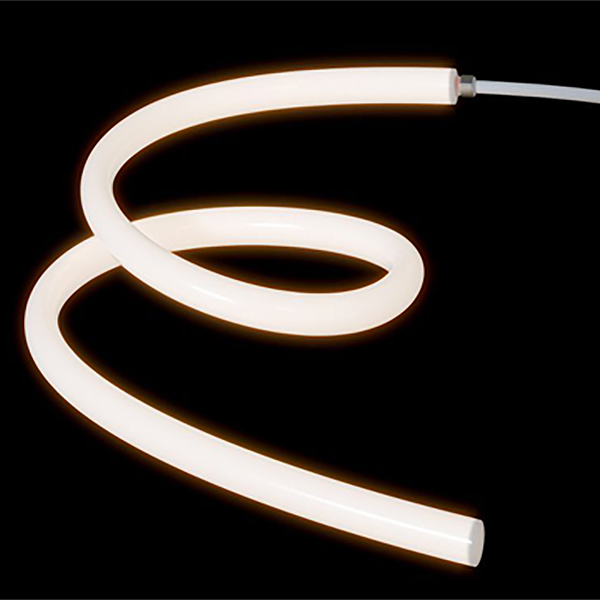

3D BEND TOP BEND SIDE BEND MINI 3D BEND MICRO SIDE BEND TUBE 360
LINAIRE® Flex is a complete line of diffused, flexible, all-location linear light with flawless performance. Si x unique form factors and bend styles add up to a single product family that you can use across your projects.
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Card Discover Networks Solutions Secure

Save installation time with factory-assembled lengths, ready to install. Or, use our robust, waterproof field connectors to build your lengths on the fly with our Top Bend and Side Bend models. All options feature 90+ CRI with high R-values, IP67 rating for wet locations, and UV stabilization for outdoor use. UL2108 listed. 5 year warranty.
ITEM Lumens/ Ft Watts/ Ft Max. Run (ft) Profile Size (in.) Wire Entry Factory Assembly Field Assembly
3D BEND 150 3.2 32.8 0.79 x 0.79 Straight,
Side,
Bottom		 ● ◐
TOP BEND 115 2.6 32.8 0.63 x 0.63 ● ●
SIDE BEND 75 2.6 32.8 0.45 x 0.79 ● ●
MINI 3D BEND 75 1.5 32.8 0.39 x 0.39 ● ◐
MICRO SIDE BEND 70 1.9 16.4 0.15 x.31 Straight ● ◐
TUBE 360 250 3.7 16.4 0.71 x 0.71 ● ◐
All fixtures can be fully factory assembled to order.
● Indicates that the fixture can be fully field assembled, including leads attached and ends capped.
◐ Indicates that the fixture can be trimmed and capped in the field, but that leads must be attached in the factory.
CLICK IMAGE for LARGER VIEW
3D BEND TOP BEND SIDE BEND MINI 3D BEND MICRO SIDE BEND TUBE 360

CLICK any ICON Below for Full Explanation:
ETL Wet or Dry Location
UL
LISTED		 Indoor or
Outdoor IP67
Click Button for Full 5 Year
Warranty Information		 Diode LED Warranty

• Accent and Task Lighting
• Facade Lighting
• Curved Coves
• Vaulted Arches and Ceilings
• General Architectural Lighting
BACK to TOP

COLOR TEMPERATURE ILLUSTRATION
KChart
LINAIRE 3D BEND - 32.8' SPOOL
  ITEM DESCRIPTION PRICE
DI-24V-3D-LIN-24-032 LINAIRE Flex Linear LED Light, 24V, 3.2W/ft, 3D Bend, 2400K $1755.00
DI-24V-3D-LIN-27-032 LINAIRE Flex Linear LED Light, 24V, 3.2W/ft, 3D Bend, 2700K $1755.00
DI-24V-3D-LIN-30-032 LINAIRE Flex Linear LED Light, 24V, 3.2W/ft, 3D Bend, 3000K $1755.00
DI-24V-3D-LIN-35-032 LINAIRE Flex Linear LED Light, 24V, 3.2W/ft, 3D Bend, 3500K $1755.00
DI-24V-3D-LIN-40-032 LINAIRE Flex Linear LED Light, 24V, 3.2W/ft, 3D Bend, 4000K $1755.00
DI-LIN-3D-MTCH-39 LINAIRE Flex, 3D Bend, Mounting Channel, 39 in., Aluminum $27.90
DI-LIN-3D-MTCL-2 LINAIRE Flex, 3D Bend, Mounting Clips, 2 Pack, White $3.60
DI-LIN-3D-SPINE-39 LINAIRE Flex, 3D Bend, Mounting Spine Channel, 39 in., White $27.90
DI-LIN-3D-DEC LINAIRE Flex, 3D Bend, End Cap $2.70
Click Button for PDF LINAIRE 3D BEND WET 24V Installation Guide PDF Wiring Diagram
Click Button for LINAIRE 3D BEND WET 24V PDF Specifications STREAMLITE WET LED PDF Specifications


LINAIRE TOP BEND - 32.8' SPOOL
ITEM DESCRIPTION PRICE
DI-24V-TE-LIN-24-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Top Bend, 2400K $1440.00
DI-24V-TE-LIN-27-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Top Bend, 2700K $1440.00
DI-24V-TE-LIN-30-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Top Bend, 3000K $1440.00
DI-24V-TE-LIN-35-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Top Bend, 3500K $1440.00
DI-24V-TE-LIN-40-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Top Bend, 4000K $1440.00
DI-LIN-TE-MTCH-39 LINAIRE Flex, Top Bend, Mounting Channel, 39 in., Aluminum &24.30
DI-LIN-TE-MTCL-2 LINAIRE Flex, Top Bend, Mounting Clips, 2 Pack, White $3.60
DI-LIN-TE-SPINE-39 LINAIRE Flex, Top Bend, Mounting Spine Channel, 39 in., White $24.30
DI-LIN-TE-STFC LINAIRE Flex, Top Bend, Field Connector, Straight $9.00
DI-LIN-TE-SDFC LINAIRE Flex, Top Bend, Field Connector, Side $9.00
DI-LIN-TE-BFC LINAIRE Flex, Top Bend, Field Connector, Bottom $9.00
DI-LIN-TE-DEC LINAIRE Flex, Top Bend, End Cap, Only

$2.70
Click Button for PDF LINAIRE TOP BEND WET 24V Installation Guide PDF Wiring Diagram
Click Button for LINAIRE TOP BEND WET 24V PDF Specifications STREAMLITE WET LED PDF Specifications


LINAIRE SIDE BEND - 32.8' SPOOL
ITEM DESCRIPTION PRICE
DI-24V-SE-LIN-24-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Side Bend, 2400K $1440.00
DI-24V-SE-LIN-27-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Side Bend, 2700K $1440.00
DI-24V-SE-LIN-30-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Side Bend, 3000K $1440.00
DI-24V-SE-LIN-35-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Side Bend, 3500K $1440.00
DI-24V-SE-LIN-40-032 LINAIRE Flex Linear LED Light, 24V, 2.6W/ft, Side Bend, 4000K $1440.00
DI-LIN-SE-MTCH-39 LINAIRE Flex, Side Bend, Mounting Channel, 39 in., Aluminum $24.30
DI-LIN-SE-MTCL-2 LINAIRE Flex, Side Bend, Mounting Clips, 2 Pack, White $3.60
DI-LIN-SE-SPINE-39 LINAIRE Flex, Side Bend, Mounting Spine Channel, 39 in., White 24.30
DI-LIN-SE-STFC LINAIRE Flex, Side Bend, Field Connector, Straight $9.00
DI-LIN-SE-SDFC LINAIRE Flex, Side Bend, Field Connector, Side $9.00
DI-LIN-SE-BFC LINAIRE Flex, Side Bend, Field Connector, Bottom $9.00
DI-LIN-SE-DEC LINAIRE Flex, Side Bend, End Cap, Only $2.70
Click Button for PDF LINAIRE SIDE BEND WET 24V Installation Guide PDF Wiring Diagram
Click Button for LINAIRE SIDE BEND WET 24V PDF Specifications STREAMLITE WET LED PDF Specifications


LINAIRE MINI 3D BEND - 32.8' SPOOL
ITEM DESCRIPTION PRICE
DI-24V-M3D-LIN-24-032 LINAIRE Flex Linear LED Light, 24V, 1.5W/ft, Mini 3D Bend, 2400K $1170.00
DI-24V-M3D-LIN-27-032 LINAIRE Flex Linear LED Light, 24V, 1.5W/ft, Mini 3D Bend, 2700K $1170.00
DI-24V-M3D-LIN-30-032 LINAIRE Flex Linear LED Light, 24V, 1.5W/ft, Mini 3D Bend, 3000K $1170.00
DI-24V-M3D-LIN-35-032 LINAIRE Flex Linear LED Light, 24V, 1.5W/ft, Mini 3D Bend, 3500K $1170.00
DI-24V-M3D-LIN-40-032 LINAIRE Flex Linear LED Light, 24V, 1.5W/ft, Mini 3D Bend, 4000K $1170.00
DI-LIN-M3D-MTCH-39 LINAIRE Flex, Mini 3D Bend, Mounting Channel, 39 in., Aluminum

$17.10
DI-LIN-M3D-MTCL-2 LINAIRE Flex, Mini 3D Bend, Mounting Clips, 2 Pack, White $3.60
DI-LIN-M3D-SPINE-39 LINAIRE Flex, Mini 3D Bend, Mounting Spine Channel, 39 in., White $17.10
DI-LIN-M3D-DEC LINAIRE Flex, Mini 3D Bend, End Cap $1.80
Click Button for PDF LINAIRE MINI 3D BEND WET 24V Installation Guide PDF Wiring Diagram
Click Button for LINAIRE MINI 3D BEND WET 24V PDF Specifications STREAMLITE WET LED PDF Specifications


LINAIRE MICRO SIDE BEND - 16.4' SPOOL
ITEM DESCRIPTION PRICE
DI-24V-MSE-LIN-24-016 LINAIRE Flex Linear LED Light, 24V, 1.9W/ft, Micro Side Bend, 2400K $540.00
DI-24V-MSE-LIN-27-016 LINAIRE Flex Linear LED Light, 24V, 1.9W/ft, Micro Side Bend, 2700K $540.00
DI-24V-MSE-LIN-30-016 LINAIRE Flex Linear LED Light, 24V, 1.9W/ft, Micro Side Bend, 3000K $540.00
DI-24V-MSE-LIN-35-016 LINAIRE Flex Linear LED Light, 24V, 1.9W/ft, Micro Side Bend, 3500K $540.00
DI-24V-MSE-LIN-40-016 LINAIRE Flex Linear LED Light, 24V, 1.9W/ft, Micro Side Bend, 4000K $540.00
DI-LIN-MSE-MTCH-39 LINAIRE Flex, Micro Side Bend, Mounting Channel, Aluminum $14.40
DI-LIN-MSE-MTCL-2 LINAIRE Flex, Micro Side Bend, Mounting Clips, 2 Pack, White $3.60
DI-LIN-MSE-EC LINAIRE Flex, Micro Side Bend, End Cap Pair, 2 open, 2 closed end caps $9.00
Click Button for PDF SIDE BEND WET 24V Installation Guide PDF Wiring Diagram
Click Button for LINAIRE MICRO SIDE BEND WET 24V PDF Specifications STREAMLITE WET LED PDF Specifications


LINAIRE TUBE 360 - 16.4' SPOOL
ITEM DESCRIPTION PRICE
DI-24V-360-LIN-24-016 LINAIRE Flex Linear LED Light, 24V, 3.7W/ft, Tube 360, 2400K $585.00
DI-24V-360-LIN-27-016 LINAIRE Flex Linear LED Light, 24V, 3.7W/ft, Tube 360, 2700K $585.00
DI-24V-360-LIN-30-016 LINAIRE Flex Linear LED Light, 24V, 3.7W/ft, Tube 360, 3000K $585.00
DI-24V-360-LIN-35-016 LINAIRE Flex Linear LED Light, 24V, 3.7W/ft, Tube 360, 3500K $585.00
DI-24V-360-LIN-40-016 LINAIRE Flex Linear LED Light, 24V, 3.7W/ft, Tube 360, 4000K $585.00
DI-LIN-360-FEC LINAIRE Flex, Tube 360 End Cap, 2 Pack $5.40
DI-LIN-360-MTCL-2 LINAIRE Flex, Tube 360, Mounting Clip, 2 Pack $3.60
DI-LIN-360-MTBR-2 LINAIRE Flex, Tube 360, Mounting Bracket, 2 Pack $13.50
DI-LIN-360-HNG-2 LINAIRE Flex, Tube 360, Hanging Hardware, 2 Pack $27.00
Click Button for PDF LINAIRE TUBE 360 WET 24V Installation Guide PDF Wiring Diagram
Click Button for LINAIRE TUBE 360 WET 24V PDF Specifications STREAMLITE WET LED PDF Specifications

BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers		 Hard-Wired
Dimmable Drivers		 12V and 24V
DRIVER / DIMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-Dimmable Drivers Hard-Wired Dimmable Drivers Hard-Wired Dimmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
