DIODE LED OBD™ FLEX OPTICS WET 24V
LED Tape Light
Flexible Linear Lighting with On-Board Optics for Grazing, Wall Washing, and Architectural Accents. Suitable for Wet Locations IP65
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Card Discover Networks Solutions Secure
Achieve professional-grade light grazing and light washing effects without the hassle, expense, and limitation of rigid fixed-length fixtures. Make your fixture fit your space, not the other way around. Use both indoors and out, and complete your installation with optional mounting channels and protective covers.
CLICK IMAGE for LARGER VIEW

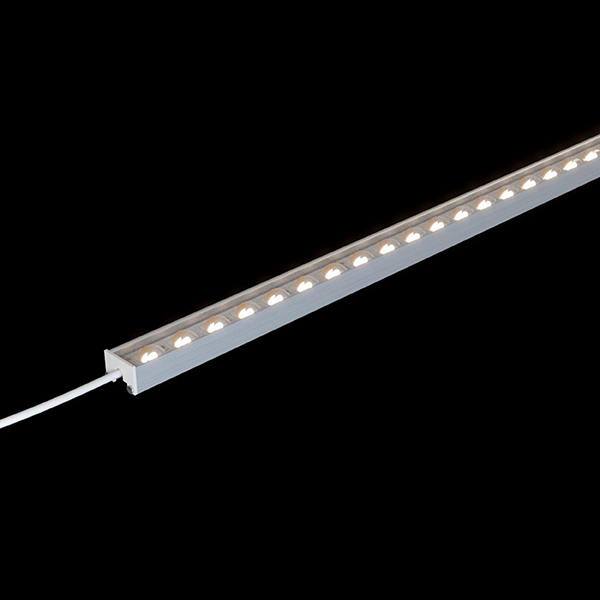

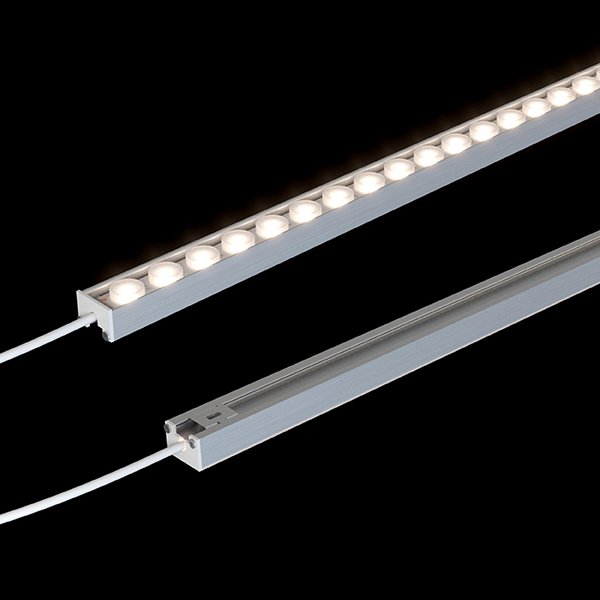

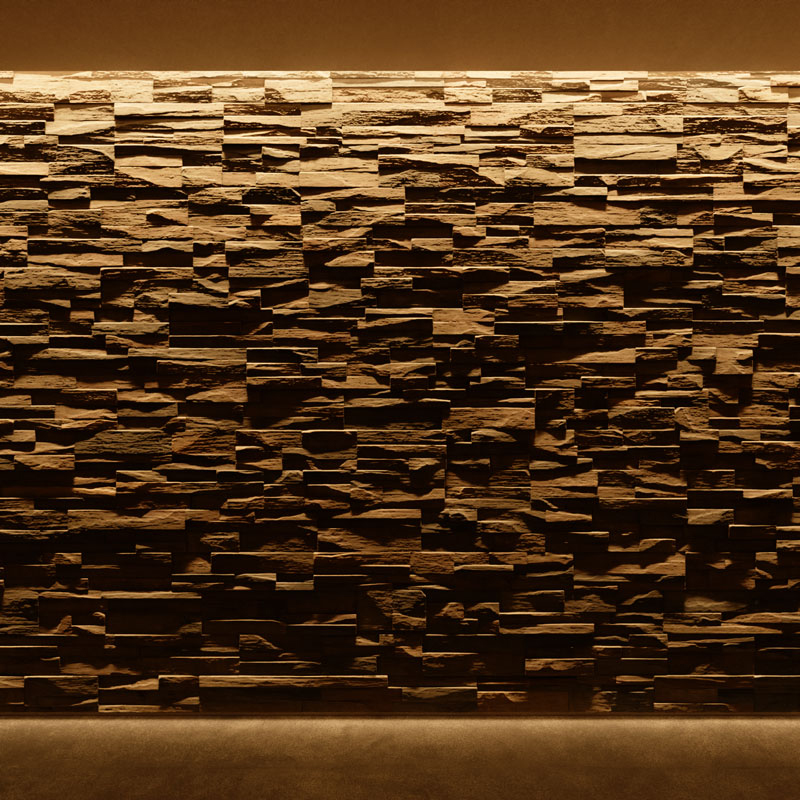

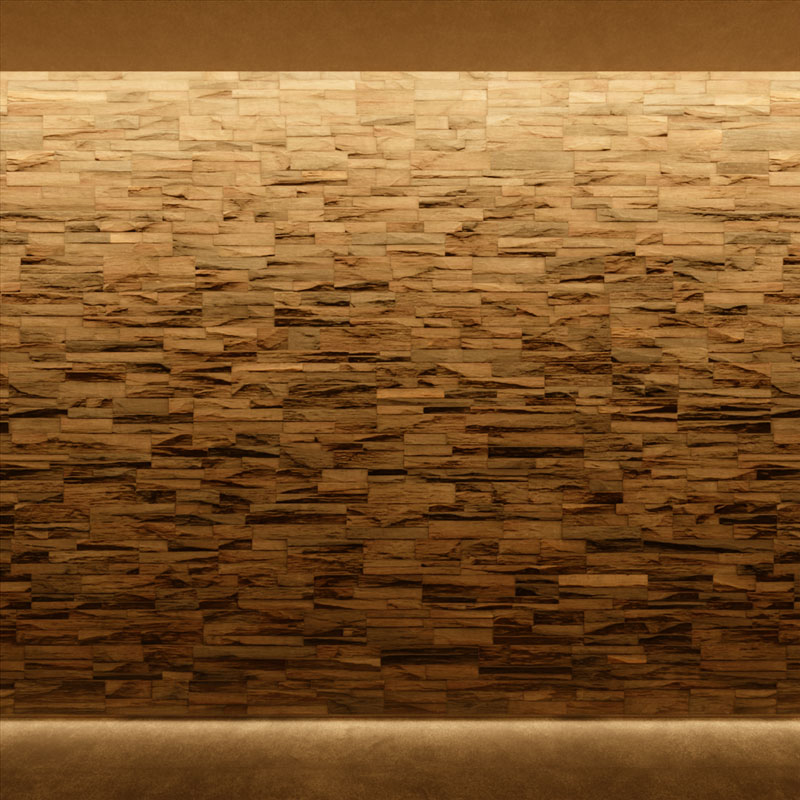

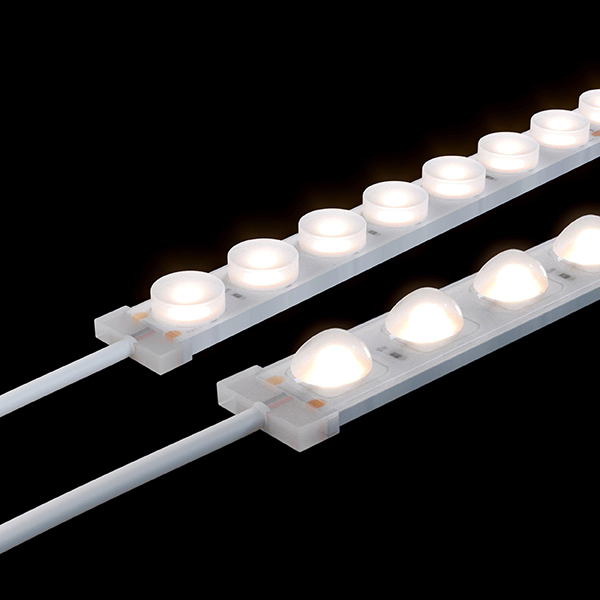

OBD FAMILY OBD BEND OBD CHANNEL OBD ASYMMETRICAL OBD WALL WASH OBD GRAZE

CLICK any ICON Below for Full Explanation:
ETL Wet or Dry Location
UL
LISTED		 Indoor or
Outdoor IP65

• Accent and Task Lighting
• Facade Lighting
• Curved Coves
• Vaulted Arches and Ceilings
• General Architectural Lighting
Click Button for PDF OBD™ FLEX OPTICS WET 24V Installation Guide PDF Wiring Diagram
Click Button for OBD™ FLEX OPTICS WET 24V PDF Specifications STREAMLITE WET LED PDF Specifications
Click Button for Full 5 Year
Warranty Information		 Diode LED Warranty
BACK to TOP

TECH SPECS
Sold in 16.4' Spools Width : 0.4 in. / Height: 0.2 in.
Color Temperature: 2700K / 3000K / 3500K / 4000K LED Type:
Beam Angle 20º or Asymmetrical LED Spacing:
Working Voltage: 24VDC Lifespan: 50,000+ hours
LEDs Per Foot : 14 Lumens Per Foot: 405 - 6.95
IP Rating: IP65 UV/IR Radiation: None
Power Consumption Per Foot: 5.5W or 7.6W
COLOR TEMPERATURE ILLUSTRATION
KChart
ITEM BEAM ANGLE INPUT VOLTAGE LUMENS/ FT MAX. RUN POWER OPTION COLOR (CCT) TYPE PRICE
DI-24V-OBD4-27K-20-016 20º 24VDC 465 17.5' 24V | 5.5W/ft. | Light engine 16.4 ft. Spool 2700K Narrow 20º Beam Angle $1,008.00
DI-24V-OBD4-27K-AS-016 Asymmetrical Angle 405 17.5' 24V | 5.5W/ft. | Light engine 16.4 ft. Spool Asymmetrical Beam Angle $1,008.00
DI-24V-OBD4-30K-20-016 20º 488 17.5' 24V | 5.5W/ft. | Light engine 16.4 ft. Spool 3000K Narrow 20º Beam Angle $1,008.00
DI-24V-OBD4-30K-AS-016 Asymmetrical Angle 414 17.5' 24V | 5.5W/ft. | Light engine 16.4 ft. Spool Asymmetrical Beam Angle $1,008.00
DI-24V-OBD4-35K-20-016 20º 505 17.5' 24V | 5.5W/ft. | Light engine 16.4 ft. Spool 3500K Narrow 20º Beam Angle $1,008.00
DI-24V-OBD4-35K-AS-016 Asymmetrical Angle 435 17.5' 24V | 5.5W/ft. | Light engine 16.4 ft. Spool Asymmetrical Beam Angle $1,008.00
DI-24V-OBD4-40K-20-016 20º 560 17.5' 24V | 5.5W/ft. | Light engine 16.4 ft. Spool 4000K Narrow 20º Beam Angle $1,008.00
DI-24V-OBD4-40K-AS-016 Asymmetrical Angle 460 17.5' 24V | 5.5W/ft. | Light engine 16.4 ft. Spool Asymmetrical Beam Angle $1,008.00
DI-24V-OBD6-27K-20-016 20º 665 14' 24V | 7.6 W/ft. | Light engine 16.4 ft. Spool 2700K Narrow 20º Beam Angle $1,296.00
DI-24V-OBD6-27K-AS-016 Asymmetrical Angle 603 14' 24V | 7.6 W/ft. | Light engine 16.4 ft. Spool Asymmetrical Beam Angle $1,296.00
DI-24V-OBD6-30K-20-016 20º 683 14' 24V | 7.6 W/ft. | Light engine 16.4 ft. Spool 3000K Narrow 20º Beam Angle $1,296.00
DI-24V-OBD6-30K-AS-016 Asymmetrical Angle 615 14' 24V | 7.6 W/ft. | Light engine 16.4 ft. Spool Asymmetrical Beam Angle $1,296.00
DI-24V-OBD6-35K-20-016 20º 695 14' 24V | 7.6 W/ft. | Light engine 16.4 ft. Spool 3500K Narrow 20º Beam Angle $1,296.00
DI-24V-OBD6-35K-AS-016 Asymmetrical Angle 633 14' 24V | 7.6 W/ft. | Light engine 16.4 ft. Spool Asymmetrical Beam Angle $1,296.00
DI-24V-OBD6-40K-20-016 20º 705 14' 24V | 7.6 W/ft. | Light engine 16.4 ft. Spool 4000K Narrow 20º Beam Angle $1,296.00
DI-24V-OBD6-40K-AS-016 Asymmetrical Angle 645 14' 24V | 7.6 W/ft. | Light engine 16.4 ft. Spool Asymmetrical Beam Angle $1,296.00
DI-OBD-EC-5 End Cap - Pack of 5 Open & 5 Closed End Caps Accessory Only $25.20
DI-OBD-MTCH-39 Mounting - Channel Accessory Only $25.20
DI-OBD-MTCH-CL-39 Mounting - Channel, Clips, Lens Accessory Only $58.50
DI-OBD-MTCL-2 Mounting - Clips (2x) Accessory Only $7.20

BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers		 Hard-Wired
Dimmable Drivers		 12V and 24V
DRIVER / DIMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-Dimmable Drivers Hard-Wired Dimmable Drivers Hard-Wired Dimmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
