DIODE LED ALPHATECH™ LED Tape Light Fully Submersible IP68 LED Tape Light

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

440-715-5539

WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US

These Cards Accepted and PROCESSED SECURELY				CLICK CATALOG BUTTON for COMPLETE SELECTION

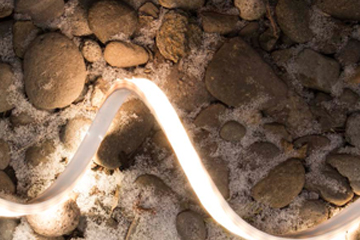

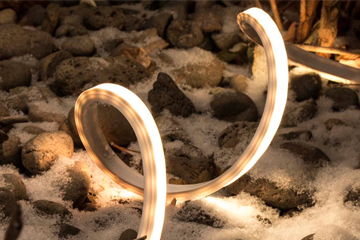

AlphaTECH is Elemental LED’s next generation innovation brought to life. Rugged and flexible light engine is designed for demanding conditions and harsh environments while bringing stunning elegance. AlphaTECH is the toughest linear light engine on the market - built impact resistant and with the strength to withstand direct UV exposure, extreme weather conditions and temperature swings using the exceptional light quality of Diode LED. Designed, developed, and manufactured in our Reno, NV Operations Center using advanced automation and robotics, AlphaTECH is born from innovative technology to be physically superior in the most rigorous applications.

		CLICK IMAGE for LARGER VIEW
Super Tough	Built for extreme and demanding conditions
Elegant Design	Slim and compact with high quality Diode LED light engine
Easy to Use	Flexible ruggedness for an easy install
UV Resistant	No Degradation or Discoloration Under Direct Sunlight
Saltwater Safe	Enhanced Longevity in Coastal or Marine Environments
Chlorine Resistant	Enhanced Performance in Treated Water
IP68 Rated	Waterproof, Fully Submersible and Weatherproof
Made in the USA	Designed, developed, and manufactured in the USA

ALPHATECH STRIP
SPECIFICATIONS and PRICING

ALPHATECH MOUNTING
ACCESSORIES

ALPHATECH STRIP
POWER SUPPLIES and CONTROLS

CLICK any ICON Below for Full Explanation:

UL
CERTIFIED

DO NOT
CONNECT TO
120V AC

24V DC

SALT WATER
RESISTANT

UV
RESISTANT

SUBMERSIBLE

Dimmable

• Direct Sunlight-Exposed Lighting

• Saltwater-Marine Environments

• Pools and Water Feature

• Indoor/ / Outdoor Architectural Accent Lighting

• Deck and Garden

• Fountains and Trellises

• Indoor Cove Lighting

• Textile Color-Matching

• Museums / Galleries

• Retail Display

Click Button to Learn about
Voltage Drop:

ALPHATECH IP68 FULLY SUBMERSIBLE EXCLUSIVE BENEFITS
- Injected molded end caps to ensure complete enclosure from moisture
- Custom lead wire lengths	- NOT for use in swimming pool and spa installations
- Customized lengths to your specifications	- Salt water and chlorine water safe
- Certified under UL 676 - Underwater Luminaire	- UV resistant to withstand extreme environment

Click Button for PDF ALPHATECH IP68 (FULLY SUBMERSIBLE) Installation Guide

Click Button for ALPHATECH LED IP68 (FULLY SUBMERSIBLE) PDF Specifications

Click Button for Full 5 Year
Warranty Information

BACK to TOP

TECH SPECS
Sold in Custom Lengths in 1.32" Increments	Width : 0.62 in. / Height: 0.41 in.
100% Dimmable	Fixture Surface Temp.: 68° - 104° F
Color Temperature Range: 2400K - 6000K	LED Type: 505 SMO LED
Beam Angle: 120°	LED Spacing: 0.3 in. between centers
Working Voltage: 24V DC	Lifespan: 50,000+ hours
LEDs Per Foot : 36	Lumens Per Foot: 387 - 415
IP Rating: IP68	UV/IR Radiation: None
Power Consumption Per Foot: 4.6W	Lifespan: 50,000+ hours

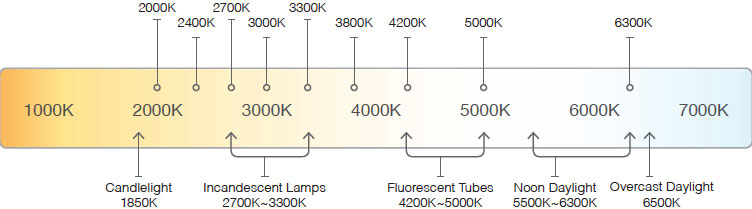

CHOOSE FROM 11 COLOR TEMPERATURES / 4 COLORS

Custom Length Ordering
ALPHATECH is factory-sealed to order in our California manufacturing plant. We offer custom-sealed, single-run lengths up to 16.0 feet, in 2.0-inch increments. With quick turnaround, ALPHATECH is the only solution for ultimate flexibility and durability indoors and out.

SOLD in INCREMENTS 0f 1.32"
- Please Contact Us for Your Custom Length Price -

440-715-5539 / MATT: ILLUMENATE@ME.COM

Use the item number format in the charts below to build your custom order of ALPHATECH or ALPHATECH PLUS. Areas marked with an asterisk (*) should be filled with your order length in inches.

Example: DI-24V-TE-AT02-FL-PD-32-8'2"-RTCL =
Diode, 24 Volt, Top emitting, AlphaTECH® 400 Type 2, Flexible, Premium Diffused, 3200 CCT, 8 feet 2 inches, with 96" lead, with rotating mounting clip.

ALPHATECH
ITEM	COLOR TEMP	CRI*	LUMENS / FT	POWER CONSUMPTION / FT.	MAX RUN
DI-24V-TE-ATO2-FL-PD-28	2800K	95+	387	4.6W	16.4 ft.
DI-24V-TE-ATO2-FL-PD-32	3200K	95+	416	4.6W	16.4 ft.
DI-24V-TE-ATO2-FL-PD-36	3600K	95+	415	4.6W	16.4 ft.
* COLOR RENDERING INDEX

CLICK IMAGE for LARGER VIEW

ALPHATECH MOUNTONG OPTIONS

DI-TE-MTCH-PL-48

DI-TE-ENC-RTCL-2

DI-TE-ENC-MTCL-2

48" Mounting Channel

Rotating Mounting Clip

Flat Mounting Clip

BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS

POWER SUPPLIES and CONTROLS

Plug-In Adapters

Hard-Wired
Non-Dimmable Drivers

Hard-Wired
Dimmable Drivers

12V and 24V
DRIVER / DIMMER

REIGN
In-Wall Controls

In-Line Controls

Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.

Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.

Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch

SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.

REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.

Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
