DIODE LED BLAZE X Strip Lights
12V Low Output / 24V Low Output / 12V Medium Output / 24V Medium Output
12V High Output / 24V High Output
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Card Discover Networks Solutions Secure

The all new precision engineered BLAZE X-Range is the enhanced version of the BLAZE and FLUID VIEW® Tape Light families with several key improvements. BLAZE X-Range has 95+ CRI and higher R-Values that provides perfect color precision, superior long-lasting performance, and all with the Diode LED 12-year warranty. The X-Range comes in a vast variety of higher efficiency lumen outputs for any application. You won’t find a more superior tape light in the market today. When precision performance matters, X-Range is the choice.
BLAZE X
SPECIFICATIONS		 BLAZE X STRIP
LIGHT
CONNECTORS		 CLICKTIGHT PRO
CONNECTOR
KITS		 CHROMAPATH
CHANNELS
and DIFFUSERS		 CHROMAPATH FIXTURE BUNDLES TAPEGUARD
TAPE LIGHT COVER 		BLAZE X STRIP
POWER SUPPLIES and CONTROLS
12V BLAZE X 24V BLAZE X

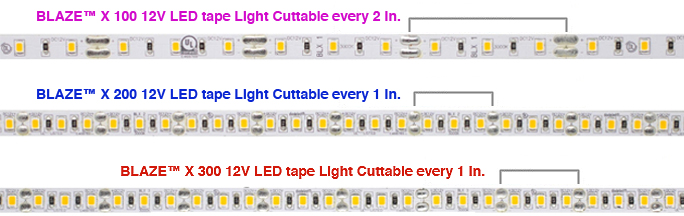

Blaze X 12V

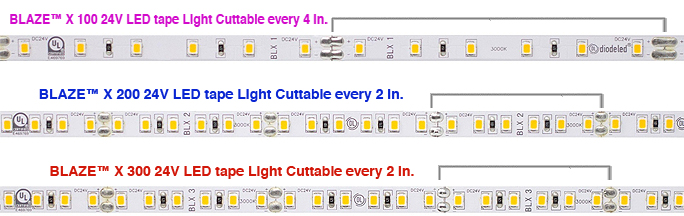

Blaze X 24V
CLICK any ICON Below for Full Explanation:
ETL Field Cuttable RoHS 24V DC 24V DC No 120V Indoor Installation Dimmable
ETL
CERTIFIED		 FIELD
CUTTABLE		 RoHS
COMPLIANT		 BLAZE X DO NOT CONNECT TO
120V AC		 Indoor
Use Only		 Dimmable
12V DC 24V DC
• Kitchen cabinet, under cabinet, shelf, and case lighting
• Exhibit, presentation, and project lighting
• Close application task lighting
• Cove and interior accent lighting
• Shop windows, window displays, display case lights, and uplighting
• Light boxes and interior signage
Click Button for PDF SOLID COLOR Installation Guide PDF Installation Guide
Click Button for BLAZE X 100 Low Output / 200 Medium Output / 300 High Output LED PDF Specifications BLAZE X 100 / 200 / 300 LED PDF Specifications
Click Button for Full 12 Year
Warranty Information		 Diode LED Warranty
TECH SPECS
Sold in 16.4' or 100' Spools Width : 0.32 in. / Height: 0.1 in.
100% Dimmable Operating Temp7: -4 ~ 176°F (-20 ~ 80°C)
Color Temperature Range: 2000K, 2400K, 2700K, 3000K, 3500K, 4200K, 5000K, 6300K LED Type: Epistar 3528 SMD Chip
Beam Angle: 120° LED Spacing: Varies
Working Voltage: 12VDC or 24V DC Lifespan: 50,000+ hours
LEDs Per Foot : X 100.- 18; X 200 / X 300- 36 Lumens Per Foot: 109 - 393
IP Rating: Indoor / Damp UV/IR Radiation: None
Connectors: 16.4 ft. spools come with 3 foot bare lead wires on one end and a 12 inch white, female DC plug on the other end; 100 ft. spools come with 3 foot bare lead wires on both ends
BLAZE X 100 Max. Run: 12V - 37': 24V 70 BLAZE X 200 Max. Run: 12V - 22': 24V 45'
BLAZE X 300 Max. Run: 12V - 20': 24V 40'
COLOR TEMPERATURE ILLUSTRATION
KChart
I
12V BLAZE X
ITEM LENGTH OUTPUT
VOLTAGE		 LUMENS
/ FT		 COLOR COLOR
TEMP		 CRI* POWER
CONS / FT		 LEDS
/ FT		 PRICE
12V BLAZE X 100
DI-12V-BLX1-24-016 16.4 ft. / 5m 12VDC 110 warm white 2400K 95+ 1.54W 18 $240.30
DI-12V-BLX1-24-100 100 ft. / 30.4m 12VDC 110 warm white 2400K 95+ 1.54W 18 $1080.00
DI-12V-BLX1-27-016 16.4 ft. / 5m 12VDC 109 warm white 2700K 95+ 1.54W 18 $240.30
DI-12V-BLX1-27-100 100 ft. / 30.4m 12VDC 109 warm white 2700K 95+ 1.54W 18 $1080.00
DI-12V-BLX1-27-400 400 ft. / 121.6m 12VDC 109 warm white 2700K 95+ 1.54W 18 $3888.00
DI-12V-BLX1-30-016 16.4 ft. / 5m 12VDC 122 warm white 3000K 95+ 1.54W 18 $240.30
DI-12V-BLX1-30-100 100 ft. / 30.4m 12VDC 122 warm white 3000K 95+ 1.54W 18 $1080.00
DI-12V-BLX1-304-00 400 ft. / 121.6m 12VDC 122 warm white 3000K 95+ 1.54W 18 $3888.00
DI-12V-BLX1-35-016 16.4 ft. / 5m 12VDC 126 neutral white 3500K 95+ 1.54W 18 $240.30
DI-12V-BLX1-35-100 100 ft. / 30.4m 12VDC 126 neutral white 3500K 95+ 1.54W 18 $1080.00
DI-12V-BLX1-35-400 400 ft. / 121.6m 12VDC 126 neutral white 3500K 95+ 1.54W 18 $3888.00
DI-12V-BLX1-42-016 16.4 ft. / 5m 12VDC 127 neutral white 4200K 95+ 1.54W 18 $240.30
DI-12V-BLX1-42-100 100 ft. / 30.4m 12VDC 127 neutral white 4200K 95+ 1.54W 18 $1080.00
DI-12V-BLX1-50-016 16.4 ft. / 5m 12VDC 128 cool White 5000K 95+ 1.54W 18 $240.30
DI-12V-BLX1-50-100 100 ft. / 30.4m 12VDC 128 cool White 5000K 95+ 1.54W 18 $1080.00
DI-12V-BLX1-63-016 16.4 ft. / 5m 12VDC 131 cool White 6300K 95+ 1.54W 18 $240.30
DI-12V-BLX1-63-100 100 ft. / 30.4m 12VDC 121 cool White 6300K 95+ 1.54W 18 $1080.00
12V BLAZE X 200
DI-12V-BLX2-24-016 16.4 ft. / 5m 12VDC 225 warm white 2400K 95+ 3.1W 36 $369.45
DI-12V-BLX2-24-100 100 ft. / 30.4m 12VDC 225 warm white 2400K 95+ 3.1W 36 $1665.00
DI-12V-BLX2-27-016 16.4 ft. / 5m 12VDC 221 warm white 2700K 95+ 3.1W 36 $369.45
DI-12V-BLX2-27-100 100 ft. / 30.4m 12VDC 221 warm white 2700K 95+ 3.1W 36 $1665.00
DI-12V-BLX2-27-400 400 ft. / 121.6m 12VDC 221 warm white 2700K 95+ 3.1W 36 $5997.60
DI-12V-BLX2-30-016 16.4 ft. / 5m 12VDC 247 warm white 3000K 95+ 3.1W 36 $369.45
DI-12V-BLX2-30-100 100 ft. / 30.4m 12VDC 247 warm white 3000K 95+ 3.1W 36 $1665.00
DI-12V-BLX2-30-400 400 ft. / 121.6m 12VDC 247 warm white 3000K 95+ 3.1W 36 $5997.60
DI-12V-BLX2-35-016 16.4 ft. / 5m 12VDC 241 neutral white 3500K 95+ 3.1W 36 $369.45
DI-12V-BLX2-35-100 100 ft. / 30.4m 12VDC 241 neutral white 3500K 95+ 3.1W 36 $1665.00
DI-12V-BLX2-35-400 400 ft. / 121.6m 12VDC 241 neutral white 3500K 95+ 3.1W 36 $5997.60
DI-12V-BLX2-42-016 16.4 ft. / 5m 12VDC 254 neutral white 4200K 95+ 3.1W 36 $369.45
DI-12V-BLX2-42-100 100 ft. / 30.4m 12VDC 254 neutral white 4200K 95+ 3.1W 36 $1665.00
DI-12V-BLX2-50-016 16.4 ft. / 5m 12VDC 262 cool White 5000K 95+ 3.1W 36 $369.45
DI-12V-BLX2-50-100 100 ft. / 30.4m 12VDC 262 cool White 5000K 95+ 3.1W 36 $1665.00
DI-12V-BLX2-63-016 16.4 ft. / 5m 12VDC 273 cool White 6300K 95+ 3.1W 36 $369.45
DI-12V-BLX2-63-100 100 ft. / 30.4m 12VDC 273 cool White 6300K 95+ 3.1W 36 $1665.00
12V BLAZE X 300
DI-12V-BLX3-24-016 16.4 ft. / 5m 12VDC 318 warm white 2400K 95+ 4.3W 36 $464.85
DI-12V-BLX3-24-100 100 ft. / 30.4m 12VDC 318 warm white 2400K 95+ 4.3W 36 $2343.60
DI-12V-BLX3-27-016 16.4 ft. / 5m 12VDC 305 warm white 2700K 95+ 4.3W 36 $464.85
DI-12V-BLX3-27-100 100 ft. / 30.4m 12VDC 305 warm white 2700K 95+ 4.3W 36 $2343.60
DI-12V-BLX3-30-016 16.4 ft. / 5m 12VDC 339 warm white 3000K 95+ 4.3W 36 $464.85
DI-12V-BLX3-30-100 100 ft. / 30.4m 12VDC 339 warm white 3000K 95+ 4.3W 36 $2343.60
DI-12V-BLX3-35-016 16.4 ft. / 5m 12VDC 352 neutral white 3500K 95+ 4.3W 36 $464.85
DI-12V-BLX3-35-100 100 ft. / 30.4m 12VDC 352 neutral white 3500K 95+ 4.3W 36 $2343.60
DI-12V-BLX3-42-016 16.4 ft. / 5m 12VDC 349 neutral white 4200K 95+ 4.3W 36 $464.85
DI-12V-BLX3-42-100 100 ft. / 30.4m 12VDC 349 neutral white 4200K 95+ 4.3W 36 $2343.60
DI-12V-BLX3-50-016 16.4 ft. / 5m 12VDC 358 cool White 5000K 95+ 4.3W 36 $464.85
DI-12V-BLX3-50-100 100 ft. / 30.4m 12VDC 358 cool White 5000K 95+ 4.3W 36 $2343.60
DI-12V-BLX3-63-016 16.4 ft. / 5m 12VDC 380 cool White 6300K 95+ 4.3W 36 $464.85
DI-12V-BLX3-63-100 100 ft. / 30.4m 12VDC 380 cool White 6300K 95+ 4.3W 36 $2343.60
* COLOR RENDERING INDEX

24V BLAZE X
ITEM LENGTH OUTPUT
VOLTAGE		 LUMENS
/ FT		 COLOR COLOR
TEMP		 CRI* POWER
CONS / FT		 LEDS
/ FT		 PRICE
24V BLAZE X 100
DI-24V-BLX1-20-016 16.4 ft. / 5m 24VDC 92 warm white 2000K 95+ 1.54W 18 N/A
DI-24V-BLX1-20-100 100 ft. / 30.4m 24VDC 92 warm white 2000K 95+ 1.54W 18 $1080.00
DI-24V-BLX1-24-016 16.4 ft. / 5m 24VDC 114 warm white 2400K 95+ 1.54W 18 $240.30
DI-24V-BLX1-24-100 100 ft. / 30.4m 24VDC 114 warm white 2400K 95+ 1.54W 18 $1080.00
DI-24V-BLX1-27-016 16.4 ft. / 5m 24VDC 112 warm white 2700K 95+ 1.54W 18 $240.30
DI-24V-BLX1-27-100 100 ft. / 30.4m 24VDC 112 warm white 2700K 95+ 1.54W 18 $1080.00
DI-24V-BLX1-27-400 400 ft. / 121.6m 24VDC 112 warm white 2700K 95+ 1.54W 18 $3888.00
DI-24V-BLX1-30-016 16.4 ft. / 5m 24VDC 126 warm white 3000K 95+ 1.54W 18 $240.30
DI-24V-BLX1-30-100 100 ft. / 30.4m 24VDC 126 warm white 3000K 95+ 1.54W 18 $1080.00
DI-24V-BLX1-30-400 400 ft. / 121.6m 24VDC 126 warm white 3000K 95+ 1.54W 18 $3888.00
DI-24V-BLX1-35-016 16.4 ft. / 5m 24VDC 131 neutral white 3500K 95+ 1.54W 18 $240.30
DI-24V-BLX1-35-100 100 ft. / 30.4m 24VDC 131 neutral white 3500K 95+ 1.54W 18 $1080.00
DI-24V-BLX1-35-400 400 ft. / 121.6m 24VDC 131 neutral white 3500K 95+ 1.54W 18 $3888.00
DI-24V-BLX1-42-016 16.4 ft. / 5m 24VDC 133 neutral white 4200K 95+ 1.54W 18 $240.30
DI-24V-BLX1-42-100 100 ft. / 30.4m 24VDC 133 neutral white 4200K 95+ 1.54W 18 $1080.00
DI-24V-BLX1-50-016 16.4 ft. / 5m 24VDC 135 cool White 5000K 95+ 1.54W 18 $240.30
DI-24V-BLX1-50-100 100 ft. / 30.4m 24VDC 135 cool White 5000K 95+ 1.54W 18 $1080.00
DI-24V-BLX1-63-016 16.4 ft. / 5m 24VDC 123 cool White 6300K 95+ 1.54W 18 $240.30
DI-24V-BLX1-63-100 100 ft. / 30.4m 24VDC 123 cool White 6300K 95+ 1.54W 18 $1080.00
24V BLAZE X 200
DI-24V-BLX2-20-016 16.4 ft. / 5m 24VDC 181 warm white 2000K 95+ 3.1W 36 N/A
DI-24V-BLX2-20-100 100 ft. / 30.4m 24VDC 181 warm white 2000K 95+ 3.1W 36 $1665.00
DI-24V-BLX2-24-016 16.4 ft. / 5m 24VDC 226 warm white 2400K 95+ 3.1W 36 $369.45
DI-24V-BLX2-24-100 100 ft. / 30.4m 24VDC 226 warm white 2400K 95+ 3.1W 36 $1665.00
DI-24V-BLX2-27-016 16.4 ft. / 5m 24VDC 224 warm white 2700K 95+ 3.1W 36 $369.45
DI-24V-BLX2-27-100 100 ft. / 30.4m 24VDC 224 warm white 2700K 95+ 3.1W 36 $1665.00
DI-24V-BLX2-27-400 400 ft. / 121.6m 24VDC 224 warm white 2700K 95+ 3.1W 36 $5743.80
DI-24V-BLX2-30-016 16.4 ft. / 5m 24VDC 253 warm white 3000K 95+ 3.1W 36 $369.45
DI-24V-BLX2-30-100 100 ft. / 30.4m 24VDC 253 warm white 3000K 95+ 3.1W 36 $1660.05
DI-24V-BLX2-30-400 400 ft. / 121.6m 24VDC 253 warm white 3000K 95+ 3.1W 36 $5997.00
DI-24V-BLX2-35-016 16.4 ft. / 5m 24VDC 254 neutral white 3500K 95+ 3.1W 36 $369.45
DI-24V-BLX2-35-100 100 ft. / 30.4m 24VDC 254 neutral white 3500K 95+ 3.1W 36 $1660.05
DI-24V-BLX2-35-400 400 ft. / 121.6m 24VDC 254 neutral white 3500K 95+ 3.1W 36 $5997.00
DI-24V-BLX2-42-016 16.4 ft. / 5m 24VDC 264 neutral white 4200K 95+ 3.1W 36 $369.45
DI-24V-BLX2-42-100 100 ft. / 30.4m 24VDC 264 neutral white 4200K 95+ 3.1W 36 $1665.00
DI-24V-BLX2-50-016 16.4 ft. / 5m 24VDC 264 cool White 5000K 95+ 3.1W 36 $369.45
DI-24V-BLX2-50-100 100 ft. / 30.4m 24VDC 264 cool White 5000K 95+ 3.1W 36 $1665.00
DI-24V-BLX2-63-016 16.4 ft. / 5m 24VDC 276 cool White 6300K 95+ 3.1W 36 $369.45
DI-24V-BLX2-63-100 100 ft. / 30.4m 24VDC 276 cool White 6300K 95+ 3.1W 36 $1665.05
24V BLAZE X 300
DI-24V-BLX3-20-016 16.4 ft. / 5m 24VDC 261 warm white 2000K 95+ 4.3W 36 N/A
DI-24V-BLX3-20-100 100 ft. / 30.4m 24VDC 261 warm white 2000K 95+ 4.3W 36 $2343.60
DI-24V-BLX3-24-016 16.4 ft. / 5m 24VDC 322 warm white 2400K 95+ 4.3W 36 $464.65
DI-24V-BLX3-24-100 100 ft. / 30.4m 24VDC 322 warm white 2400K 95+ 4.3W 36 $2343.60
DI-24V-BLX3-27-016 16.4 ft. / 5m 24VDC 318 warm white 2700K 95+ 4.3W 36 $464.65
DI-24V-BLX3-27-100 100 ft. / 30.4m 24VDC 318 warm white 2700K 95+ 4.3W 36 $2343.60
DI-24V-BLX3-30-016 16.4 ft. / 5m 24VDC 360 warm white 3000K 95+ 4.3W 36 $464.65
DI-24V-BLX3-30-100 100 ft. / 30.4m 24VDC 360 warm white 3000K 95+ 4.3W 36 $2343.60
DI-24V-BLX3-35-016 16.4 ft. / 5m 24VDC 357 neutral white 3500K 95+ 4.3W 36 $464.65
DI-24V-BLX3-35-100 100 ft. / 30.4m 24VDC 357 neutral white 3500K 95+ 4.3W 36 $2343.60
DI-24V-BLX3-42-016 16.4 ft. / 5m 24VDC 365 neutral white 4200K 95+ 4.3W 36 $464.65
DI-24V-BLX3-42-100 100 ft. / 30.4m 24VDC 365 neutral white 4200K 95+ 4.3W 36 $2343.60
DI-24V-BLX3-50-016 16.4 ft. / 5m 24VDC 378 cool White 5000K 95+ 4.3W 36 $464.65
DI-24V-BLX3-50-100 100 ft. / 30.4m 24VDC 378 cool White 5000K 95+ 4.3W 36 $2343.60
DI-24V-BLX3-63-016 16.4 ft. / 5m 24VDC 393 cool White 6300K 95+ 4.3W 36 $464.65
DI-24V-BLX3-63-100 100 ft. / 30.4m 24VDC 393 cool White 6300K 95+ 4.3W 36 $2343.60
* COLOR RENDERING INDEX

CUSTOM LENGTHS AVAILABLE FOR EASE OF INSTALLATION
Made in the USA Assembled in the USA
Custom Finished LED Tape Light
• Cut LED tape light to specified lengths
• Choose from a wide variety of single-color and color-changing options
• Lead wire is cut to specified length and soldered to the end of the tape light
Custom Cut CHROMAPATH™ Aluminum Channels
• Cut CHROMAPATH Aluminum Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Each channel includes:
        2 optional end-to-end connector plugs to connect to another CHROMAPATH Channel for runs longer than 4 feet.
        2 mounting clips with each SQUARE, 45, and DUO channel.
        SLIM channels don’t require mounting clips. SLIM Channel Mounting Tape is sold separately.
Fully Loaded CHROMAPATH Fixtures with LED Tape Light
• Create a customized, low profile light fixture to specified length and color temperature by adding your choice of LED
  tape light to your preferred CHROMAPATH Aluminum Channel
• Cut CHROMAPATH Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Lead wire is cut to specified length and soldered to the end of the tape light within the fixture
• The fixture is completed with a CHROMAPATH Cover and End Caps
• SQUARE, 45 DEGREE, and DUO channel styles include 2 mounting clips. SLIM channels don’t require mounting clips.
  SLIM Channel Mounting Tape is sold separately.
CONTACT US FOR QUOTE: 440-715-5539 / ILLUMENATE@ME.COM
BACK to TOP

WET LOCATION CONNECTORS
DI-10MM-WL-SCP
DI-10MM-WL-DC-F
DI-10MM-WL-DC-M
DI-10MM-WL6-EXT
DI-10MM-WL12-EXT
DI-10MM-WL24-EXT
DI-10MM-WLSP2
DI-10MM-WLSP3
DI-10MM-WLSP5
DI-0755 / DI-WPSL
SCP DI-10MM-WL-DC-F DI-10MM-WL-DC-M DI-0725 DI-10MM-WLSP2 DI-10MM-WLSP3 DI-10MM-WLSP5 DI-0762
Wet Location
Splice Connector Pair 		Wet Location Female / Male
Connector		 Wet Location Male-to Female
6" / 12" / 24" Extension Cable		 We t Location
2-Way / 3-Way / 5-Way
Splitter		 Waterproof End Caps
Waterproof Sealant
Connects the Light Strip to a Hard-Wired Driver.
Connects the Light Strip to a Plug-In Adapter and other DC accessories.
Creates an extension between Light strips and Poser Supplies.
Creates an connection for multiple Light strips and Poser Supplies.
Pack of 10 End Caps.

45g Tube of Sealant.
3.0” Length 0.3” Length 6" / 12" / 24" Length
$4.50
$8.10
$8.10
Length Price
6" $4.50
12" $7.20
24" $8.10
Item Price
2-WAY $8.10
3-WAY $9.90
5-WAY $12.15
$5.40 / $8.10

CLICK IMAGE for LARGER VIEW
CHROMAPATH™ Aluminum Channels
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.
• New wider track fits all CLICKTIGHT connectors to eliminate the use of soldering, and maximizes beam angle.
Gloss White, Aluminum, Matte Black
Channels and End Caps Available in
Glossy White (W), Aluminum
and Satin Black (B)

• New mounting clips make installation easy. Simply mount the clips to a desired surface and snap in the Aluminum Channel.
• 48” channel length accommodates strip light cut point of all densities for flawless lighting throughout the full enclosure.
Click Button for PDF Instructions Instructions
Click BUTTON for CHROMAPATH SPECIFICATIONS CHROMAPATH PDF Specifications
DI-CPCHA-SQ48
DI-CPCHA-SQ7296
DI-CPCHA-4548
DI-CPCHA-4596
DI-CPCHA-DU48
96" NOT Available
DI-CPCHA-SL48
DI-CPCHA-SL72
DI-CPCHA-SL96
DI-1600-B DI-CPCHA-SQ96-B DI-1601-B DI-CPCHA-4596-B DI-1662-B DI-1603 DI-CPCHA-SL96
96" CHANNELS, COVERS and CHANNEL KITS REQUIRE a SHIPPING QUOTE PROVIDED by DIODE LED
SQUARE
Aluminum Channel
Square Aluminum Channel
45°
Aluminum Channel
45 Aluminum Channel
DUO
Aluminum Channel
Duo Aluminum Channel
SLIM
Aluminum Channel
Slim Aluminum Channel
CHROMAPATH Channels Available in 48" and 96" Lengths
DI-1660-B Dimensions DI-1661-B Dimensions DI-1602-B Dimensions DI-1603-B Dimensions
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Aluminum Channel Only.
Mounts with
DI-1633 or DI-1634
(3M Double Sided Tape)
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W) LENGTH KEY: 48 - 48" / 72 - 72" / 96 - 96"
DI-CPCHA-SQ48 / 96
$33.30 / $82.35
DI-CPCHA-SQ48B / 96B
$42.75 / $95.85
DI-CPCHA-SQ48W / 96W
$42.75 / $95.85
8 / 96
$41.85 / $99.00
DI-CPCHA-4548B / 96B
$49.95 / $117.90
DI-CPCHA-SQ48W / 96W
$49.95 / $117.90
DI-CPCHA-DU48
N/A
DI-CPCHA-DU48B
N/A
DI-CPCHA-DU48W
N/A
DI-CPCHA-SL48 / 72 / 96
$18,00 / $36.00 / $47.70
DI-CPCHA-SL48B / 72B / 96B
$24.30 / $43.20 / $56.70
DI-CPCHA-SL48W / 72W / 96W
$24.30 / $43.20 / $56.70
CHROMAPATH™ END CAPS
DI-CPEC-SQ DI-CPEC-45 DI-CPEC-DU DI-CPEC-SL
DI-1620-3 DI-1620-3
DI-1622-3 DI-1622-3
DI-1622-3 DI-1622-3
DI-1624-3 DI-1624-3
DI-1626-3 DI-1626-3
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W)
SQUARE End Cap
Set
of 1 Open / 1 Closed		 45° End Cap
Set
of 1 Open / 1 Closed		 DUO End Cap
Set
of 1 Open / 1 Closed		 SLIM End Cap
Set
of 1 Open / 1 Closed
DI-CPEC-SQ-1
$2.70
DI-CPEC-SQB-1
$2.70
DI-CPEC-SQW-1
$2.70
DI-CPEC-45-1
$2.70
DI-CPEC-45B-1
$2.70
DI-CPEC-45W-1
$2.70
DI-CPEC-DU
N/A
DI-CPEC-DUB
N/A
DI-CPEC-DUW
N/A
DI-CPEC-SL
$1.80
DI-CPEC-SLB
$1.80
DI-CPEC-SLW
$1.80
PREMIUM DIFFUSION END CAPS
DI-CPEC-SQPD6
$2.70
DI-CPEC-SQPDB
$2.70
DI-CPEC-SQPDW
$2.70
DI-CPEC-45PD
$2.70
DI-CPEC-45PDB
$2.70
DI-CPEC-45PDW
$2.70
N/A
DI-CPEC-SLPD
$1.80
DI-CPEC-SLPDB
$1.80
DI-CPEC-SLPDW
$1.80
CHROMAPATH™ Aluminum Channel ACCESSORIES
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.

The ultimate in total diffusion for uninterrupted continuous LED light output. Please note there is an average warm shift in Kelvin of 75K and an average 24% decrease in delivered lumen.(Not for use with DUO Channel. Not for use with DAZZLE® RGBW or VALENT® LED Tape Light).
DI-1630-20 DI-1631-10 DI-1912
DI-CPCH-RC-BA
DI-CPCH-RC-BL
DI-CPCH-RC-WH
DI-CPCH-HNG
DI-1630-20 DI-1631-10 DI-1912, DI-1913 DI-CPCH-RC-BA DI-CPCH-RC-BL DI-CPCH-RC-WH DI-CPCH-HNG
Mounting Clips
20 Pack
NOT for SLIM
CHANNEL		 End to End Connector
10 Pack
NOT for SLIM
CHANNEL		 Vertical Mounting Support for
SQUARE and 45°
Adjustable Angle Mounting Rotating Clips NOT for SLIM - 2 Clips and 2 Screws Transform your Channel into a pendent fixture with
Hanging Hardware Kit
NOT for SLIM CHANNEL
$18.45 $14.40 $9.00 $22.50 per Set
CLICK for SPECS DI-CPCH-HNG Specs
$40.95
DI-CPCH-UC-BA
DI-CPCH-UC-BL
DI-CPCH-UC-WH
DI-CPCH-MUC-BA
DI-CPCH-MUC-BL
DI-CPCH-MUC-WH
DI-CPCHC-FR48
DI-CPCHC-CL48
DI-CPCHC-FR72
DI-CPCHC-CL72
DI-CPCHC-FR96
DI-CPCHC-CL96
Premium Diffusion Cover
DI-CPCHC-PD48
DI-CPCHC-PD72
DI-CPCHC-PD96
DI-0775-S
DI-1633
DI-1633
DI-CPCH-UC-BA DI-CPCH-UC-BL DI-CPCH-UC-WH DI-CPCH-MUC-BA DI-CPCH-MUC-BL DI-CPCH-MUC-WH DI-1610 / DI1611 DI-CPCHC-PD48 DI-CPCHC-PD96 DI-1633 DI-1634
Mounting U-Clips for SLIM - 2 Clips and 2 Screws, Brushed Aluminum, Satin Black or Glossy White Magnetic Mounting U-Clips for SLIM - 2 Clips and 2 Screws, Brushed Aluminum, Satin Black or Glossy White 48" Frosted Lens
48" Clear Lens
72" Frosted Lens
72" Clear Lens
96" Frosted Lens
96" Clear Lens 		NOT for USE with
DUO		 CHROMAPATH
Channel SLIM
mounting tape (8mm)
12' single piece
[3 channels]
48" Prem. Diff. Lens
72" Prem. Diff. Lens
96" Prem. Diff. Lens
0.53H x 0.83W
$7.20 per Set $10.80 per Set
$9.00
$14.40
$18.45
$14.40
$23.85
$31.05
3M Double Sided
Tape
100' Spool $89.55
12' Section $27.90
4' Section

$9.90
BACK to TOP

ELEMENT CHANNELS FOR INDOOR / OUTDOOR STRIP MOUNTING
Features and Benefits
• Made from durable polymers
• Indoor/outdoor applications
• Resistant to outdoor elements
Details
ELEMENT™ Channels are durable mounting channels made from durable, reinforced polymers for all conditions. Two styles available for any application
ELEMENT™ FORTÉ Mounting Channel- Ideal for installing in all conditions with minimal presence. (Pack of 2 channels) Length - 39.4 in.
Comparability
•  Blaze™ Wet Location LED Strip Light (requires adhesive)
• Fluid View® Wet Location LED Strip Light (requires adhesive)
• DAZZLE® RGB Wet Location LED Strip Light
• Hydrolume® Series Strip Light
DI-ELMT-FT-39
DI-ELMT-FT-39
FORTE
Mounting Channel
Pack of 2
39.4” Length
$26.10
BACK to TOP

CLICK IMAGE for LARGER VIEW
TAPEGUARD™ LED TAPE LIGHT COVER
TAPEGUARD is the easiest way to provide a decorative protection of indoor LED tape light installations and create an attractive and finished look.

The Low Profile cover comes with an adhesive edging that adheres to clean, dry surfaces. TAPEGUARD is made of lightweight, polycarbonate plastic that is easy to install and maintain. The covers can be placed end to end or cut to size for the perfect finished look to linear LED tape installations.
• Choose CLEAR cover for maximum light output Add a wipe-able protective lens to LED tape light for protection from:
• Dust
• Airborne Grease and Dirt

• Choose FROSTED COVER for subtle light diffusion
• Works with AVENUE 24, FLUID VIEW, BLAZE, DAZZLE 24 and K-RANGE 24
• Does not change the IP rating of the tape light
DI-TAPE-GRD-FR / DI-TAPE-GRD-CL
Tapeguard DI-TAPE-GRD-FR, DI-TAPE-GRD-CL
DI-1662-B DI-1662-B DI-1662-B
Shown with BLAZE
LED Tape Light 		0.4" Wide x 0.15" Height
x 39.4" Length		 Simply Cut to length, Peel edge backing and Apply to surface
FROSTED - $8.10 CLEAR - $8.10

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers		 Hard-Wired
Dimmable Drivers		 12V and 24V
DRIVER / DIMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-Dimmable Drivers Hard-Wired Dimmable Drivers Hard-Wired Dimmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch

Thank You for Visiting LED High Tech Lighting.com. Copyright © 1998 - 2025
`
