Diode
From
LED High Tech Lighting
LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
Diode
ENGINEERED, ASSEMBLED, BUILT or MODIFIED
in the USA		 / by
AMERICAN WORKERS
DIODE LED BLAZE BASICS Strip Lights
12V Low Output / 24V Low Output / 12V Medium Output / 24V Medium Output /
12V High Output / 24V High Output
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Discover Networks

Diode LED introduces BLAZE™ Basics - our new value engineered LED tape light leveraging the advances in efficient, cleaner technology, newer circuit design, streamlined manufacturing, and economies of scale. Featuring 90+ CRI, this enhanced version of the popular BLAZE and FLUID VIEW Tape Light families is backed by a 7-year warranty and the well known service and support of Diode LED at an extremely attractive price point. This new low voltage led lighting for indoor task lighting and display lighting is built on the same dependable LED tape and strip light format you are used to working with from Diode LED.
BLAZE BASICS
SPECIFICATIONS		 BLAZE BASICS STRIP
LIGHT
CONNECTORS		 CLICKTIGHT PRO
CONNECTOR
KITS		 CHROMAPATH
CHANNELS
and DIFFUSERS		 CHROMAPATH FIXTURE BUNDLES TAPEGUARD
TAPE LIGHT COVER 		BLAZE BASICS STRIP
POWER SUPPLIES and CONTROLS
BLAZE BASCS KITS

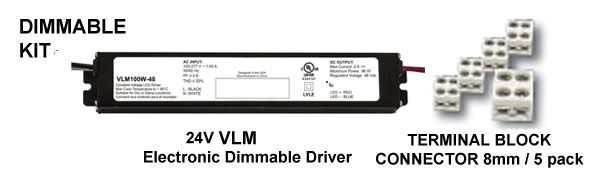

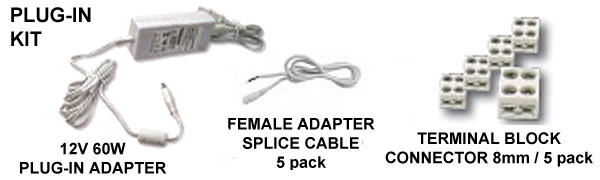

DIMMABLE KITS CONSTANT VOLTAGE KITS SWITCHEX KITS PLUG-IN KITS
Dimmable Constant Driver Plug-In
OMNIDRIVE VLM DRIVER / DIMMER in ONE PLUG-IN ADAPTER

Blaze
Blaze
CLICK any ICON Below for Full Explanation:
ETL Field RoHS 24V 24V No Dimmable
ETL
CERTIFIED		 FIELD
CUTTABLE		 RoHS
COMPLIANT		 BLAZE BASICS DO NOT CONNECT TO
120V AC		 Dimmable
12V DC 24V DC
• Kitchen cabinet, under cabinet, shelf, and case lighting
• Exhibit, presentation, and project lighting
• Close application task lighting
• Cove and interior accent lighting
• Shop windows, window displays, display case lights, and uplighting
• Light boxes and interior signage

Click Button for PDF SOLID COLOR Installation Guide PDF
Click Button for BLAZE BASICS 100 LOW Output LED PDF Specifications BLAZE
Click Button for BLAZE BASICS 200 MEDIUM Output LED PDF Specifications
Click Button for BLAZE BASICS 200 MEDIUM Output LED PDF Specifications
Click Button for Full 7 Year
Warranty Information		 Diode
TECH SPECS

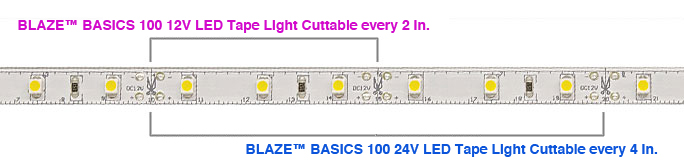

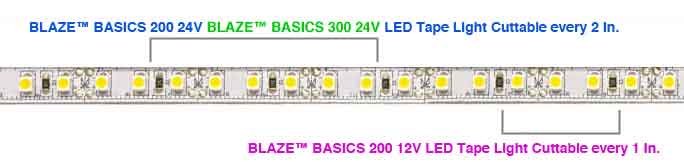

Sold in 16.4' or 100' Spools Width : 0.32 in. / Height: 0.1 in.
100% Dimmable Operating Temp7: -4 ~ 176°F (-20 ~ 80°C)
Color Temperature Range: 2000K, 2700K, 3000K, 3500K, 4200K, 5000K, 6300K LED Type: 3528 GuangMu Chip
Beam Angle: 120° LED Spacing: 0.6" BASICS 100 / 0.3" BASICS 200 / 300 between centers
Working Voltage: 12VDC or 24VDC Lifespan: 50,000+ hours
LEDs Per Foot : BASICS 100 - 18; BASICS 200 / 300- 36 Lumens Per Foot: 114 - 344
IP Rating: Indoor / Damp UV/IR Radiation: None
Connectors: 16.4 ft. spools come with 3 foot bare lead wires on one end and a 12 inch white, female DC plug on the other end; 100 ft. spools come with 3 foot bare lead wires on both ends
BASICS 100 Max. Run: 12V - 27': 24V 55' BASICS 200 Max. Run: 12V - 20':' 24V 40'
BASICS 200 Max. Run: 24V 36'
COLOR TEMPERATURE ILLUSTRATION
KChart
ITEM LENGTH OUTPUT VOLATGE LUMENS
/ FT		 COLOR COLOR
TEMP.		 CRI* POWER
CONS / FT		 LEDS
/ FT		 PRICE
12V BLAZE BASICS 100
DI-12V-BLBSC1-27-016 16.4 ft. / 5m 12VDC 117 warm white 2700K 90+ 1.46W 18 $89.55
DI-12V-BLBSC1-27-100 100 ft. / 30.4m 12VDC 117 warm white 2700K 90+ 1.46W 18 $495.00
DI-12V-BLBSC1-27-400 400 ft. / 121.9m 12VDC 117 warm white 2700K 90+ 1.46W 18 $1785.60
DI-12V-BLBSC1-30-016 16.4 ft. / 5m 12VDC 121 warm white 3000K 90+ 1.46W 18 $89.55
DI-12V-BLBSC1-30-100 100 ft. / 30.4m 12VDC 121 warm white 3000K 90+ 1.46W 18 $495.00
DI-12V-BLBSC1-30-400 400 ft. / 121.9m 12VDC 121 warm white 3000K 90+ 1.46W 18 $1785.60
DI-12V-BLBSC1-35-016 16.4 ft. / 5m 12VDC 117 neutral white 3000K 90+ 1.46W 18 $89.55
DI-12V-BLBSC1-35-100 100 ft. / 30.4m 12VDC 117 neutral white 3500K 90+ 1.46W 18 $495.00
DI-12V-BLBSC1-35-400 400 ft. /121.9m 12VDC 117 neutral white 3500K 90+ 1.46W 18 $1785.60
DI-12V-BLBSC1-42-016 16.4 ft. / 5m 12VDC 131 neutral white 3500K 90+ 1.46W 18 $89.55
DI-12V-BLBSC1-42-100 100 ft. / 30.4m 12VDC 131 neutral white 4200K 90+ 1.46W 18 $495.00
DI-12V-BLBSC1-50-016 16.4 ft. / 5m 12VDC 130 cool white 4200K 90+ 1.46W 18 $89.55
DI-12V-BLBSC1-50-100 100 ft. / 30.4m 12VDC 130 cool white 5000K 90+ 1.46W 18 $495.00
DI-12V-BLBSC1-63-016 16.4 ft. / 5m 12VDC 121 cool white 6300K 90+ 1.46W 18 $89.55
DI-12V-BLBSC1-63-100 100 ft. / 30.4m 12VDC 121 cool white 6300K 90+ 1.46W 18 $495.00
24V BLAZE BASICS 100
DI-24V-BLBSC1-27-016 16.4 ft. / 5m 24VDC 113 warm white 2700K 90+ 1.46W 18 $89.55
DI-24V-BLBSC1-27-100 100 ft. / 30.4m 24VDC 113 warm white 2700K 90+ 1.46W 18 $495.00
DI-24V-BLBSC1-27-400 400 ft. / 121.6m 24VDC 113 warm white 2700K 90+ 1.46W 18 $1785.60
DI-24V-BLBSC1-30-016 16.4 ft. / 5m 24VDC 117 warm white 3000K 90+ 1.46W 18 $89.55
DI-24V-BLBSC1-30-100 100 ft. / 30.4m 24VDC 117 warm white 3000K 90+ 1.46W 18 $495.00
DI-24V-BLBSC1-30-400 400 ft. / 121.9m 24VDC 117 warm white 3000K 90+ 1.46W 18 $1785.60
DI-24V-BLBSC1-35-016 16.4 ft. / 5m 24VDC 126 neutral white 3500K 90+ 1.46W 18 $89.55
DI-24V-BLBSC1-35-100 100 ft. / 30.4m 24VDC 126 neutral white 3500K 90+ 1.46W 18 $495.00
DI-24V-BLBSC1-35-400 400 ft. / 121.9m 24VDC 126 neutral white 3500K 90+ 1.46W 18 $1785.60
DI-24V-BLBSC1-42-016 16.4 ft. / 5m 24VDC 133 neutral white 4200K 90+ 1.46W 18 $89.55
DI-24V-BLBSC1-42-100 100 ft. / 30.4m 24VDC 133 neutral white 4200K 90+ 1.46W 18 $495.00
DI-24V-BLBSC1-50-016 16.4 ft. / 5m 24VDC 132 cool white 5000K 90+ 1.46W 18 $89.55
DI-24V-BLBSC1-50-100 100 ft. / 30.4m 24VDC 132 cool white 5000K 90+ 1.46W 18 $495.00
DI-24V-BLBSC1-63-016 16.4 ft. / 5m 24VDC 123 cool white 6300K 90+ 1.46W 18 $89.55
DI-24V-BLBSC1-63-100 100 ft. / 30.4m 24VDC 123 cool white 6300K 90+ 1.46W 18 $495.00
12V BLAZE BASICS 200
DI-12V-BLBSC2-27-016 16.4 ft. / 5m 12VDC 212 warm white 2700K 90+ 2.93W 36 $154.80
DI-12V-BLBSC2-27-100 100 ft. / 30.4m 12VDC 212 warm white 2700K 90+ 2.93W 36 $855.00
DI-12V-BLBSC2-27-400 400 ft. / 121.9m 12VDC 212 warm white 2700K 90+ 2.93W 36 $3124.80
DI-12V-BLBSC2-30-016 16.4 ft. / 5m 12VDC 221 warm white 3000K 90+ 2.93W 36 $154.80
DI-12V-BLBSC2-30-100 100 ft. / 30.4m 12VDC 221 warm white 3000K 90+ 2.93W 36 $855.00
DI-12V-BLBSC2-30-400 400 ft. / 121.9m 12VDC 221 warm white 3000K 90+ 2.93W 36 $3124.80
DI-12V-BLBSC2-35-016 16.4 ft. / 5m 12VDC 236 neutral white 3500K 90+ 2.93W 36 $154.80
DI-12V-BLBSC2-35-100 100 ft. / 30.4m 12VDC 236 neutral white 3500K 90+ 2.93W 36 $855.00
DI-12V-BLBSC2-35-400 400 ft. / 121.9m 12VDC 236 neutral white 3500K 90+ 2.93W 36 $3124.80
DI-12V-BLBSC2-42-016 16.4 ft. / 5m 12VDC 256 neutral white 4200K 90+ 2.93W 36 $154.80
DI-12V-BLBSC2-42-100 100 ft. / 30.4m 12VDC 256 neutral white 4200K 90+ 2.93W 36 $855.00
DI-12V-BLBSC2-50-016 16.4 ft. / 5m 12VDC 256 cool white 5000K 90+ 2.93W 36 $154.80
DI-12V-BLBSC2-50-100 100 ft. / 30.4m 12VDC 256 cool white 5000K 90+ 2.93W 36 $855.00
DI-12V-BLBSC2-63-016 16.4 ft. / 5m 12VDC 272 cool white 6300K 90+ 2.93W 36 $154.80
DI-12V-BLBSC2-63-100 100 ft. / 30.4m 12VDC 272 cool white 6300K 90+ 2.93W 36 $855.00
24V BLAZE BASICS 200
DI-24V-BLBSC2-27-016 16.4 ft. / 5m 24VDC 233 warm white 2700K 90+ 2.93W 36 $154.80
DI-24V-BLBSC2-27-100 100 ft. / 30.4m 24VDC 233 warm white 2700K 90+ 2.93W 36 $855.00
DI-24V-BLBSC2-27-400 400 ft. / 121.9m 24VDC 233 warm white 2700K 90+ 2.93W 36 $3124.80
DI-24V-BLBSC2-30-016 16.4 ft. / 5m 24VDC 237 warm white 3000K 90+ 2.93W 36 $154.80
DI-24V-BLBSC2-30-100 100 ft. / 30.4m 24VDC 237 warm white 3000K 90+ 2.93W 36 $855.00
DI-24V-BLBSC2-30-400 400 ft. / 121.9m 24VDC 237 warm white 3000K 90+ 2.93W 36 $3124.80
DI-24V-BLBSC2-35-016 16.4 ft. / 5m 24VDC 249 neutral white 3500K 90+ 2.93W 36 $154.80
DI-24V-BLBSC2-35-100 100 ft. / 30.4m 24VDC 249 neutral white 3500K 90+ 2.93W 36 $855.00
DI-24V-BLBSC2-35-400 400 ft. / 121.9m 24VDC 249 neutral white 3500K 90+ 2.93W 36 $3124.80
DI-24V-BLBSC2-42-016 16.4 ft. / 5m 24VDC 265 neutral white 4200K 90+ 2.93W 36 $154.80
DI-24V-BLBSC2-42-100 100 ft. / 30.4m 24VDC 265 neutral white 4200K 90+ 2.93W 36 $855.00
DI-24V-BLBSC2-50-016 16.4 ft. / 5m 24VDC 261 cool white 5000K 90+ 2.93W 36 $154.80
DI-24V-BLBSC2-50-100 100 ft. / 30.4m 24VDC 261 cool white 5000K 90+ 2.93W 36 $855.00
DI-24V-BLBSC2-63-016 16.4 ft. / 5m 24VDC 276 cool white 6300K 90+ 2.93W 36 $154.80
DI-24V-BLBSC2-63-100 100 ft. / 30.4m 24VDC 276 cool white 6300K 90+ 2.93W 36 $855.00
24V BLAZE BASICS 300
DI-24V-BLBSC3-20-016 16.4 ft. / 5m 24VDC 290 warm white 2000K 90+ 4.50W 36 $196.65
DI-24V-BLBSC3-20-100 100 ft. / 30.4m 24VDC 290 warm white 2000K 90+ 4.50W 36 $1080.00
DI-24V-BLBSC3-27-016 16.4 ft. / 5m 24VDC 338 warm white 2700K 90+ 4.50W 36 $196.65
DI-24V-BLBSC3-27-100 100 ft. / 30.4m 24VDC 338 warm white 2700K 90+ 4.50W 36 $1080.00
DI-24V-BLBSC3-30-016 16.4 ft. / 5m 24VDC 344 warm white 3000K 90+ 4.50W 36 $196.65
DI-24V-BLBSC3-30-100 100 ft. / 30.4m 24VDC 344 warm white 3000K 90+ 4.50W 36 $1080.00
DI-24V-BLBSC3-35-016 16.4 ft. / 5m 24VDC 329 neutral white 3500K 90+ 4.50W 36 $196.65
DI-24V-BLBSC3-35-100 100 ft. / 30.4m 24VDC 329 neutral white 3500K 90+ 4.50W 36 $1080.00
DI-24V-BLBSC3-42-016 16.4 ft. / 5m 24VDC 344 neutral white 4200K 90+ 4.50W 36 $196.65
DI-24V-BLBSC3-42-100 100 ft. / 30.4m 24VDC 344 neutral white 4200K 90+ 4.50W 36 $1080.00
DI-24V-BLBSC3-50-016 16.4 ft. / 5m 24VDC 338 cool white 5000K 90+ 4.50W 36 $196.65
DI-24V-BLBSC3-50-100 100 ft. / 30.4m 24VDC 338 cool white 5000K 90+ 4.50W 36 $1080.00
DI-24V-BLBSC3-63-016 16.4 ft. / 5m 24VDC 341 cool white 6300K 90+ 4.50W 36 $196.65
DI-24V-BLBSC3-63-100 100 ft. / 30.4m 24VDC 341 cool white 6300K 90+ 4.50W 36 $1080.00
* COLOR RENDERING INDEX

CUSTOM LENGTHS AVAILABLE FOR EASE OF INSTALLATION
Made Assembled in the USA
Custom Finished LED Tape Light
• Cut LED tape light to specified lengths
• Choose from a wide variety of single-color and color-changing options
• Lead wire is cut to specified length and soldered to the end of the tape light
Custom Cut CHROMAPATH™ Aluminum Channels
• Cut CHROMAPATH Aluminum Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Each channel includes:
        2 optional end-to-end connector plugs to connect to another CHROMAPATH Channel for runs longer than 4 feet.
        2 mounting clips with each SQUARE, 45, and DUO channel.
        SLIM channels don’t require mounting clips. SLIM Channel Mounting Tape is sold separately.
Fully Loaded CHROMAPATH Fixtures with LED Tape Light
• Create a customized, low-Profilee light fixture to specified length and color temperature by adding your choice of LED
  tape light to your preferred CHROMAPATH Aluminum Channel
• Cut CHROMAPATH Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Lead wire is cut to specified length and soldered to the end of the tape light within the fixture
• The fixture is completed with a CHROMAPATH Cover and End Caps
• SQUARE, 45 DEGREE, and DUO channel styles include 2 mounting clips. SLIM channels don’t require mounting clips.
  SLIM Channel Mounting Tape is sold separately.
CONTACT US FOR QUOTE: 440-715-5539 / ILLUMENATE@ME.COM
BACK to TOP

CLICK IMAGE for LARGER VIEW
CLICKTIGHT STRIP CONNECTORS

The CLICKTIGHT™ Strip Light Connector performs as a simple, secure connection for the whole line of indoor  Diode LED Strip Lights. This connector accessory  eliminates the need to solder, and is more secure than the standard Strip Light Connector. It features a special strip light locking connector at one end and optional opposite ends for a DC Plug, Spliced leads, or another locking connector for strip-to-strip connections.
For 8mm Wide BLAZE X, BLAZE BASICS
For 12mm Wide VALENNT X
For 8 mm LED Tape
DI-CKT-xxSP8
DI-CKT-xxSP8-5
DI-CKT-xxSP8-25
For 10 mm LED Tape
DI-CKT-xxSP10
DI-CKT-xxSP10-5
DI-CKT-xxSP10-25
For 8 mm LED Tape
DI-CKT-DC8
DI-CKT-DC8-5
DI-CKT-DC8-25
For 10 mm LED Tape
DI-CKT-DC10
DI-CKT-DC10-5
DI-CKT-DC10-25
For 8 mm LED Tape
DI-CKT-TL8
DI-CKT-TL8-5
DI-CKT-TL8-25
For 10 mm LED Tape
DI-CKT-TL10
DI-CKT-TL10-5
DI-CKT-TL10-25
For 8 mm LED Tape
DI-CKT-xxBX8
DI-CKT-xxBX8-5
DI-CKT-xxBX8-25
For 10 mm LED Tape
DI-CKT-xxBX10
DI-CKT-xxBX10-5
DI-CKT-xxBX10-25
DI-0855, DI-0850 DI-0865 DI-0860,
SPLICE CONNECTOR DC CONNECTOR TAPE LINK CONNECTOR FLEXIBLE EXTENSION
Connects non-waterproof single color FLUID VIEW, BLAZE, ULTRA BLAZE and AVENUE 24 to a Hard-Wired Driver.
Connects non-waterproof single color FLUID VIEW, BLAZE, ULTRA BLAZE and AVENUE 24 to a Plug-In Driver.
Connects sections of non-waterproof single color FLUID VIEW, BLAZE, ULTRA BLAZE and AVENUE 24
Connects sections of non-waterproof single color FLUID VIEW, BLAZE, ULTRA BLAZE and AVENUE 24 with a flexible joint with a bending range of 0° - 180°
0.6" 0.6" 0.7" x 0.4" x 0.1" 0.7" x 0.4" x 0.1"
ITEM PACK (P)
DI-CKT-3SP8 1 5 25
3" - $8.10 / $34.20 /
$134.10
DI-CKT-3SP10 1 5 25
3" - $8.10 / $34.20 /
$134.10
DI-CKT-24SP8 1 5 25
24" - $9.90 / $45.00 /
$179.65
DI-CKT-24SP10 1 5 25
24" - $9.90 / $45.00 /
$178.65
DI-CKT-48SP8 1 5 25
48" - $12.15 / $56.70 /
$222.75
DI-CKT-48SP10 1 5 25
48" - $12.15 / $56.70 /
$222.75
DI-CKT-96SP8 1 5 25
96" - $16.20 / $78.75 /
$267.30
ITEM PACK (P)
DI-CKT-DC8 1 5 25
3" - $8.10 / $34.20 /
$134.10
DI-CKT-DC10 1 5 25
3" - $8.10 / $34.20 /
$134.10
ITEM PACK (P)
DI-CKT-TL8 1 5 25
3" - $8.10 / $34.20 /
$134.10
DI-CKT-TL10 1 5 25$
3" - $8.10 / $34.20 /
$134.10
ITEM PACK (P)
DI-CKT-3BX8 1 5 25
3" - $8.10 / $34.20 /
$134.10
DI-CKT-3BX10 1 5 25
3" - $8.10 / $34.20 /
$134.10
DI-CKT-6BX8 1 5 25
6" - $8.50 / $34.20 /
$147.60
DI-CKT-6BX10 1 5 25
6" - $8.50 / $35.20 /
$147.60
DI-CKT-12BX8 1 5 25
12" - $9.00 / $45.00 /
$161.55
DI-CKT-12BX10 1 5 25
12" - $9.00 / $45.00 /
$161.55
DI-CKT-24BX8 1 5 25
24" - $9.90 / $46.20 /
$178.75
DI-CKT-24BX10 1 5 25
24" - $9.90 / $45.00 /
$178.75
DI-CKT-48BX8 1 5 25
48" - $12.15/ $56.70 /
$222.75
DI-CKT-48BX10 1 5 25
48" - $12.15 / $56.70 /
$222.75
DI-1662-B
TAPE LIGHT TERMINAL BLOCK Connectors

Create easy, fast, and secure tape light connections with the new Tape Light Terminal Block Connector. It features screw down connections and a small form factor for minimal presence in tight spaces.

DI-TB8-CONN-TTT-1
DI-TB8-CONN-TTT-5
DI-TB8-CONN-TTT-25
The Easy, Secure and
Preferred Connector
DI-TB8-CONN-TTW-1
DI-TB8-CONN-TTW-5
DI-TB8-CONN-TTW-25
DI-TB8-CONN-TTT-1
Voltage 12 - 24VDC
Max. Amperage 12V - 5A / 24V - 4A
Wire Gauge 16 AWG - 20 AWG
Dimensions 0.45"L x 0.40"W x 0.30"H in
Environment Indoor
Warranty 5 Year
DI-TB8-CONN-TTT-1
Tape-To-Tape Terminal Bloc
Single / 5-Pack / 25-Pack		   Tape-To-Wire Terminal Block
Single / 5-Pack / 25-Pack
Dimensions on Spec Sheet
Click Button for CLICKTIGHT PRO PDF INSTRUCTIONS PDF
Click Button for CLICKTIGHT PRO SPECIFICATIONS FLUID
$3.15
$13.50
$66.15

$3.15
$13.50
$66.15
TAPE LIGHT TERMINAL BLOCK SPLICE CABLES AND JUMPERS
DI-TB8-6JPR-TTT-1 DI-TB8-60SPL-TTW-1
8mm Tape-To-Tape Jumper 8mm Tape-To-Wire Splice
ITEM DESCRIPTION PRICE
DI-TB8-6JPR-TTT-1 8mm Tape-To-Tape Jumper (6 in. / 20 AWG) -Single $5.40
DI-TB8-6JPR-TTT-25 8mm Tape-To-Tape Jumper (6 in. / 20 AWG) -Pack of 25 $121.50
DI-TB8-60JPR-TTT-1 8mm Tape-To-Tape Jumper (60 in. / 20 AWG) -Single $6.30
DI-TB8-60JPR-TTT-25 8mm Tape-To-Tape Jumper (60 in. / 20 AWG) -Pack of 25 $141.75
BACK to TOP

CLICK IMAGE for LARGER VIEW
CHROMAPATH™ Aluminum Channels
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.
• New wider track fits all CLICKTIGHT connectors to eliminate the use of soldering, and maximizes beam angle.
Gloss
Channels and End Caps Available in
Glossy White (W), Aluminum
and Satin Black (B)

• New mounting clips make installation easy. Simply mount the clips to a desired surface and snap in the Aluminum Channel.
• 48” channel length accommodates strip light cut point of all densities for flawless lighting throughout the full enclosure.
Click Button for PDF Instructions Instructions
Click BUTTON for CHROMAPATH SPECIFICATIONS CHROMAPATH
DI-CPCHA-SQ48
DI-CPCHA-SQ7296
DI-CPCHA-4548
DI-CPCHA-4596
DI-CPCHA-DU48
96" NOT Available
DI-CPCHA-SL48
DI-CPCHA-SL72
DI-CPCHA-SL96
DI-1600-B DI-1601-B DI-1662-B DI-1603
96" CHANNELS, COVERS and CHANNEL KITS REQUIRE a SHIPPING QUOTE PROVIDED by DIODE LED
SQUARE
Aluminum Channel
Square
45°
Aluminum Channel
45
DUO
Aluminum Channel
Duo
SLIM
Aluminum Channel
Slim
CHROMAPATH Channels Available in 48" and 96" Lengths
DI-1660-B DI-1661-B DI-1602-B DI-1603-B
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Aluminum Channel Only.
Mounts with
DI-1633 or DI-1634
(3M Double Sided Tape)
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W) LENGTH KEY: 48 - 48" / 72 - 72" / 96 - 96"
DI-CPCHA-SQ48 / 96
$33.30 / $82.35
DI-CPCHA-SQ48B / 96B
$42.75 / $95.85
DI-CPCHA-SQ48W / 96W
$42.75 / $95.85
8 / 96
$41.85 / $99.00
DI-CPCHA-4548B / 96B
$49.95 / $117.90
DI-CPCHA-SQ48W / 96W
$49.95 / $117.90
DI-CPCHA-DU48
N/A
DI-CPCHA-DU48B
N/A
DI-CPCHA-DU48W
N/A
DI-CPCHA-SL48 / 72 / 96
$18,00 / $36.00 / $47.70
DI-CPCHA-SL48B / 72B / 96B
$24.30 / $43.20 / $56.70
DI-CPCHA-SL48W / 72W / 96W
$24.30 / $43.20 / $56.70
CHROMAPATH™ END CAPS
DI-CPEC-SQ DI-CPEC-45 DI-CPEC-DU DI-CPEC-SL
DI-1620-3 DI-1620-3
DI-1622-3 DI-1622-3
DI-1622-3 DI-1622-3
DI-1624-3 DI-1624-3
DI-1626-3 DI-1626-3
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W)
SQUARE End Cap
Set
of 1 Open / 1 Closed		 45° End Cap
Set
of 1 Open / 1 Closed		 DUO End Cap
Set
of 1 Open / 1 Closed		 SLIM End Cap
Set
of 1 Open / 1 Closed
DI-CPEC-SQ-1
$2.70
DI-CPEC-SQB-1
$2.70
DI-CPEC-SQW-1
$2.70
DI-CPEC-45-1
$2.70
DI-CPEC-45B-1
$2.70
DI-CPEC-45W-1
$2.70
DI-CPEC-DU
N/A
DI-CPEC-DUB
N/A
DI-CPEC-DUW
N/A
DI-CPEC-SL
$1.80
DI-CPEC-SLB
$1.80
DI-CPEC-SLW
$1.80
PREMIUM DIFFUSION END CAPS
DI-CPEC-SQPD6
$2.70
DI-CPEC-SQPDB
$2.70
DI-CPEC-SQPDW
$2.70
DI-CPEC-45PD
$2.70
DI-CPEC-45PDB
$2.70
DI-CPEC-45PDW
$2.70
N/A
DI-CPEC-SLPD
$1.80
DI-CPEC-SLPDB
$1.80
DI-CPEC-SLPDW
$1.80
CHROMAPATH™ Aluminum Channel ACCESSORIES
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.

The ultimate in total diffusion for uninterrupted continuous LED light output. Please note there is an average warm shift in Kelvin of 75K and an average 24% decrease in delivered lumen.(Not for use with DUO Channel. Not for use with DAZZLE® RGBW or VALENT® LED Tape Light).
DI-1630-20 DI-1631-10 DI-1912
DI-CPCH-RC-BA
DI-CPCH-RC-BL
DI-CPCH-RC-WH
DI-CPCH-HNG
DI-1630-20 DI-1631-10 DI-1912, DI-CPCH-RC-BA DI-CPCH-HNG
Mounting Clips
20 Pack
NOT for SLIM
CHANNEL		 End to End Connector
10 Pack
NOT for SLIM
CHANNEL		 Vertical Mounting Support for
SQUARE and 45°
Adjustable Angle Mounting Rotating Clips NOT for SLIM - 2 Clips and 2 Screws Transform your Channel into a pendent fixture with
Hanging Hardware Kit
NOT for SLIM CHANNEL
$18.45 $14.40 $9.00 $22.50 per Set
CLICK for SPECS DI-CPCH-HNG
$40.95
DI-CPCH-UC-BA
DI-CPCH-UC-BL
DI-CPCH-UC-WH
DI-CPCH-MUC-BA
DI-CPCH-MUC-BL
DI-CPCH-MUC-WH
DI-CPCHC-FR48
DI-CPCHC-CL48
DI-CPCHC-FR72
DI-CPCHC-CL72
DI-CPCHC-FR96
DI-CPCHC-CL96
Premium Diffusion Cover
DI-CPCHC-PD48
DI-CPCHC-PD72
DI-CPCHC-PD96
DI-0775-S
DI-1633
DI-1633
DI-CPCH-UC-BA DI-CPCH-MUC-BA DI-1610 DI-CPCHC-PD48 DI-1633
Mounting U-Clips for SLIM - 2 Clips and 2 Screws, Brushed Aluminum, Satin Black or Glossy White Magnetic Mounting U-Clips for SLIM - 2 Clips and 2 Screws, Brushed Aluminum, Satin Black or Glossy White 48" Frosted Lens
48" Clear Lens
72" Frosted Lens
72" Clear Lens
96" Frosted Lens
96" Clear Lens 		NOT for USE with
DUO		 CHROMAPATH
Channel SLIM
mounting tape (8mm)
12' single piece
[3 channels]
48" Prem. Diff. Lens
72" Prem. Diff. Lens
96" Prem. Diff. Lens
0.53H x 0.83W
$7.20 per Set $10.80 per Set
$9.00
$14.40
$18.45
$14.40
$23.85
$31.05
3M Double Sided
Tape
100' Spool $89.55
12' Section $27.90
4' Section

$9.90
BACK to TOP

ELEMENT CHANNELS FOR INDOOR / OUTDOOR STRIP MOUNTING
Features and Benefits
• Made from durable polymers
• Indoor/outdoor applications
• Resistant to outdoor elements
Details
ELEMENT™ Channels are durable mounting channels made from durable, reinforced polymers for all conditions. Two styles available for any application
ELEMENT™ FORTÉ Mounting Channel- Ideal for installing in all conditions with minimal presence. (Pack of 2 channels) Length - 39.4 in.
Comparability
•  Blaze™ Wet Location LED Strip Light (requires adhesive)
• Fluid View® Wet Location LED Strip Light (requires adhesive)
• DAZZLE® RGB Wet Location LED Strip Light
• Hydrolume® Series Strip Light
DI-ELMT-FT-39
DI-ELMT-FT-39
FORTE
Mounting Channel
Pack of 2
39.4” Length
$26.10
BACK to TOP

CLICK IMAGE for LARGER VIEW
TAPEGUARD™ LED TAPE LIGHT COVER
TAPEGUARD is the easiest way to provide a decorative protection of indoor LED tape light installations and create an attractive and finished look.

The blog-Profilee cover comes with an adhesive edging that adheres to clean, dry surfaces. TAPEGUARD is made of lightweight, polycarbonate plastic that is easy to install and maintain. The covers can be placed end to end or cut to size for the perfect finished look to linear LED tape installations.
• Choose CLEAR cover for maximum light output Add a wipe-able protective lens to LED tape light for protection from:
• Dust
• Airborne Grease and Dirt

• Choose FROSTED COVER for subtle light diffusion
• Works with AVENUE 24, FLUID VIEW, BLAZE, DAZZLE 24 and K-RANGE 24
• Does not change the IP rating of the tape light
DI-TAPE-GRD-FR / DI-TAPE-GRD-CL
Tapeguard DI-TAPE-GRD-FR,
DI-1662-B DI-1662-B DI-1662-B
Shown with BLAZE
LED Tape Light 		0.4" Wide x 0.15" Height
x 39.4" Length		 Simply Cut to length, Peel edge backing and Apply to surface
FROSTED - $8.10 CLEAR - $8.10
CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers		 Hard-Wired
Dimmable Drivers		 12V and 24V
DRIVER / DIMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Hard-Wired Hard-Wired Hard-Wired In-Wall In-Line
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch

Thank You for Visiting LED High Tech Lighting.com. Copyright © 1998 - 2025
`
