DIODE LED 24V NEON BLAZE™
The Latest in Continuous Color Saturation
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Discover Networks
Neon
Neon Blaze		 Neon
Neon Blaze Application
CLICK Above Application IMAGE for LARGER VIEW
Engineered for optimal color saturation with new dual diffusion technology, Neon Blaze™ is the highest quality flexible LED strip light in the industry. Unlike those cheap bulk rope lights that show hot spots, you can count on dazzling accent lighting with Neon Blaze and its tight bend radius, continuous color saturation, and popular color palette.
• Mimics Traditional Neon • Zero Line Diffusion
• Tight Bend Radius • Continuous Color Saturation
• Lettering • Accent Lighting
• Side Emitting • Top Emitting
SIDE EMITTING
NEON BLAZE 		TOP EMITTING
NEON BLAZE 		SIDE EMITTING
NEON BLAZE RGB		 NEON BLAZE
POWER SUPPLIES and CONTROLS
CLICK IMAGE for LARGER VIEW
Neon
CLICK any ICON Below for Full Explanation:
UL RoHS 24V No Indoor Dimmable
UL
CERTIFIED		 RoHS
COMPLIANT		 24V DC DO NOT CONNECT TO
120V AC		 Indoor /
Outdoor Use 		Dimmable
Click Button for NEON BLAZE TOP EMITTING Specifications PDF Neon
Click Button for NEON BLAZE SIDE EMITTING Specifications PDF Neon
Click Button for NEON BLAZE Installation PDF Neon
Click Button for Full 5 Year
Warranty Information		 Diode
BACK to TOP

TECH SPECS
Side
Light Beam Angle  120 degree
Connection Type See specification sheet for connection options.
Dimmable Yes
Field Cuttable Yes - 2" Cut Points
Color Rendering Index (CRI) 80+
Wattage 1.22W, 2.44W or 4.40W per FT
Voltage 24VDC
Environment Indoor / Outdoor Wet Location IP65
LED Chip Type 2835 SMD Chip
Max. Run 65' 6"
Certification UL Listed 2108
Warranty  5-Year Limited
Top
COLOR TEMPERATURE ILLUSTRATION
KChart
CLOCK IMAGE for LARGER VIEW
SIDE-EMITTING NEON BLAZE
Side 2700K 3000K 3500K 6300K GREEN BLUE PINK RED GOLD
2700K 3000K 3500K 6300K Green Blue Ping Red Gold
ITEM COLOR
TEMP		 LUMEN
per FT
 0.75"H x 0.37"W MAX.
RUN		 POWER
CONSUMPTION 		PRICE EACH
LENGTH
DI-24V-SE-NBL1-27-65 2700K 62 65.6 ft. / 20m 65.0 ft. 1.22W / ft. $1736.10
DI-24V-SE-NBL1-30-65 3000K 65
DI-24V-SE-NBL1-35-65 3500K 60
DI-24V-SE-NBL1-63-65 6300K 59
DI-24V-SE-NBL1-BL-65 Blue 6
DI-24V-SE-NBL1-GL-65 Gold 31
DI-24V-SE-NBL1-GN-65 Green 30
DI-24V-SE-NBL1-PK-65 Pink 17
DI-24V-SE-NBL1-RD-65 Red 11
DI-24V-SE-NBL2-27-32 2700K 134 32.8 ft. / 10m 32.0 ft. 2.44W / ft. $956.25
DI-24V-SE-NBL2-30-32 3000K 146
DI-24V-SE-NBL2-35-32 3500K 120
DI-24V-SE-NBL2-63-32 6300K 116
DI-24V-SE-NBL2-BL-32 Blue 12
DI-24V-SE-NBL2-GL-32 Gold 61
DI-24V-SE-NBL2-GN-32 Green 48
DI-24V-SE-NBL2-PK-32 Pink 37
DI-24V-SE-NBL2-RD-32 Red 21
DI-24V-SE-NBL4-27-16 2700K 208 16.4 ft. / 5m 16.0 ft. 4.40W / ft. $515.25
DI-24V-SE-NBL4-30-16 3000K 198
DI-24V-SE-NBL4-35-16 3500K 195
DI-24V-SE-NBL4-63-16 6300K 173
DI-24V-SE-NBL4-BL-16 Blue 18
DI-24V-SE-NBL4-GL-16 Gold 84
DI-24V-SE-NBL4-GN-16 Green 78
DI-24V-SE-NBL4-PK-16 Pink 53
DI-24V-SE-NBL4-RD-16 Red 34
SIDE-EMITTING NEON BLAZE ACCESSORIES
Neon
Click Button for NEON BLAZE SIDE EMITTING ACCESSORIES Specifications PDF Neon

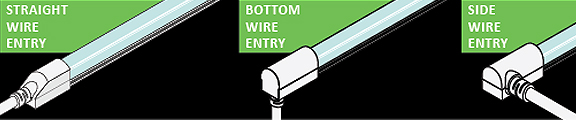

DI-SE-NB-STWC-EC
Cover and End Cap Included with Wire Entry Connector
DI-SE-NB-SDWC-EC
DI-SE-NB-STWC-EC DI-SE-NB-STWC-EC DI-SE-NB-STWC-EC
DI-SE-NB-SDWC-EC DI-SE-NB-SDWC-EC DI-SE-NB-SDWC-EC
96" STRAIGHT Wire
Entry Connector		 1.36"L x 0.57"W
x 0.96" Cover		 0.68"L x 0.67"W
x 0.98" End Cap		 96" SIDE Wire
Entry Connector		 1.37"L x 0.66"W
x 0.97" Cover		 0.68"L x 0.67"W
x 0.98" End Cap
$13.50 $13.50
DI-SE-NB-BWC-EC DI-SE-NB-BUC-16 DI-SE-NB-TUC-16 DI-SE-NB-MTCH
DI-SE-NB-BWC-EC DI-SE-NB-BWC-EC DI-SE-NB-STWC-EC
DI-SE-NB-BUC-16 DI-SE-NB-TUC-16 DI-SE-NB-MTCH
96" BOTTOM Wire
Entry Connector		 1.38"L x 0.56"W
x 0.98" Cover		 0.68"L x 0.67"W
x 0.98" End Cap		 Side Emitting T op
U-Clip - 16 Pack
0.78"L x 0.53"W
x0.62"H		 Side Emitting Bottom
U-Clip - 16 Pack
0.59"L x 1.18"W
x 0.86"H		 Side Emitting
Mounting Channel
35.0"L 0.53"W
x 0.62"H
$13.50 $34.20 $34.20 $17.10
BACK to TOP

CLICK IMAGE for LARGER VIEW
TOP-EMITTING NEON BLAZE
Top 2700K 3000K 3500K 6300K GREEN BLUE PINK RED GOLD
2700K 3000K 3500K 6300K Green Blue Ping Red Gold
ITEM COLOR
TEMP		 LUMENS
per FT		 0.59"H x 0.65"W LENGTH POWER
CONSUMPTION 		PRICE
LENGTH
DI-24V-TE-NBL1-27-65 2700K 86 65.6 ft. / 20m 65.0 ft. 1.22W / ft. $1736.10
DI-24V-TE-NBL1-30-65 3000K 102
DI-24V-TE-NBL1-35-65 3500K 89
DI-24V-TE-NBL1-63-65 6300K 88
DI-24V-TE-NBL1-BL-65 Blue 18
DI-24V-TE-NBL1-GL-65 Gold 70
DI-24V-TE-NBL1-GN-65 Green 88
DI-24V-TE-NBL1-PK-65 Pink 39
DI-24V-TE-NBL1-RD-65 Red 31
DI-24V-TE-NBL2-27-32 2700K 173 32.8 ft. / 10m 32.0 ft. 2.44W / ft. $956.25
DI-24V-TE-NBL2-30-32 3000K 219
DI-24V-TE-NBL2-35-32 3500K 178
DI-24V-TE-NBL2-63-32 6300K 174
DI-24V-TE-NBL2-BL-32 Blue 30
DI-24V-TE-NBL2-GL-32 Gold 157
DI-24V-TE-NBL2-GN-32 Green 148
DI-24V-TE-NBL2-PK-32 Pink 93
DI-24V-TE-NBL2-RD-32 Red 61
DI-24V-TE-NBL4-27-16 2700K 248 16.4 ft. / 5m 16.0 ft. 4.40W / ft. $515.25
DI-24V-TE-NBL4-30-16 3000K 317
DI-24V-TE-NBL4-35-16 3500K 273
DI-24V-TE-NBL4-63-16 6300K 266
DI-24V-TE-NBL4-BL-16 Blue 37
DI-24V-TE-NBL4-GL-16 Gold 184
DI-24V-TE-NBL4-GN-16 Green 151
DI-24V-TE-NBL4-PK-16 Pink 110
DI-24V-TE-NBL4-RD-16 Red 64
TOP-EMITTING NEON BLAZE ACCESSORIES
Neon
Click Button for NEON BLAZE TOP EMITTING ACCESSORIES Specifications PDF Neon
DI-TE-NB-STWC-EC
Cover and End Cap Included with Wire Entry Connector
DI-TE-NB-SDWC-EC
DI-TE-NB-STWC-EC DI-TE-NB-STWC-EC DI-SE-TB-STWC-EC
DI-TE-NB-SDWC-EC DI-TE-NB-SDWC-EC DI-TE-NB-SDWC-EC
96" STRAIGHT Wire
Entry Connector		 1.36"L x 0.89"W
x 0.76" Cover		 0.68"L x 0.80"W
x 0.76" End Cap		 96" SIDE Wire
Entry Connector		 1.36"L x 0.89"W
x 0.76" Cover		 0.68"L x 0.80"W
x 0.76" End Cap
$13.50 $13.50
DI-TE-NB-BWC-EC DI-TE-NB-BUC-16 DI-TE-NB-TUC-16 DI-TE-NB-MTCH
DI-TE-NB-BWC-EC DI-TE-NB-BWC-EC DI-TE-NB-SDWC-EC
DI-TE-NB-BUC-16 DI-TE-NB-TUC-16 DI-TE-NB-MTCH
96" BOTTOM Wire
Entry Connector		 1.38"L x 0.89"W
x 0.76" Cover		 0.68"L x 0.80"W
x 0.76" End Cap		 Top Emitting T op
U-Clip - 16 Pack
0.98"L x 78"W
x 0.38"H		 Top Emitting Bottom
U-Clip - 16 Pack
0.62"L x 1.44"W
x 0.64"H		 Top Emitting
Mounting Channel
35.0"L 0.78"W
x 0.38"H
$13.50 $34.20 $34.20 $17.10
BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers		 Hard-Wired
Dimmable Drivers		 12V and 24V
DRIVER / DIMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Hard-Wired Hard-Wired Hard-Wired In-Wall In-Line
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
