DIODE LED TRIANT 2 Puck Light - Brushed Aluminum / Black / White

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

440-715-5539

WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US

These Cards Accepted and PROCESSED SECURELY				CLIOCK CATALOG BUTTON for COMPLETE SELECTION

Diode LED has released the new TRIANT LED puck light family using Samsung LEDs. The result is a dimmable LED puck with superior quality, brightness and color rendering capability. Producing up to 353 lumens of light output while consuming a low 3.92W Watts of power, the TRIANT LED Puck Light is your brightest option in an efficient, dimmable puck fixture.

The TRIANT is an architectural grade indoor LED puck light that features a sleek design with three finishes and two color temperature options. TRIANT pucks have a sturdy but lightweight aluminum housing that can be surface mounted or recessed-mounted making it ideal for cabinets, furniture, shelf, display-case, and accent lighting.

TRIANT 2 PUCK
LIGHT

TRIANT 2 PUCK LIGHT
SPECIFICATIONS and PRICING

TRIANT 2 PUCK LIGHT
POWER SUPPLIES and CONTROLS

CLICK IMAGE for LARGER VIEW

BRUSHED ALUMINUM (SA)	BLACK SATIN (SB)	WHITE SATIN (SW)

CLICK any ICON Below for Full Explanation:

UL
CERTIFIED

12V DC

NO
120V AC

Indoor
Use Only

Dimmable

BACK to TOP

TECH SPECS

Dimmable: YES

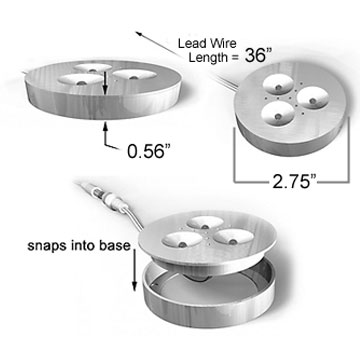

Diameter : .75' / Depth: 0.56" / Cutout: 2.55"

Color Temperature: 3000K or 6200K

LED Type: Samsung LED

36" Lead Wire with DC Connection

Beam Angle: 120°

Working Voltage: 12V DC or 24V DC

Lifespan: 50,000+ hours

LEDs Per Fixture : 3

Can be Recessed or Surface Mounted

IP Rating: IP63

UV/IR Radiation: None

Power Consumption Per Foot: 3.92W / 326mA

Click Button for PDF Installation Guide

Click Button for TRIANT LED PDF Specifications

Click Button for Full 5 Year
Warranty Information

ITEM	FINISH	DIMMABLE	COLOR	COLOR TEMP.	LUMENS	POWER CONSUMPTION	CRI	PRICE
DI-1224V-TRNT2-30-AL	Brushed Aluminum	yes	warm white	3000k	275	3.92W / 326mA	82	$67.95
DI-1224V-TRNT2-50-AL	Brushed Aluminum		cool white	5000K	348		74	$67.95
DI-1224V-TRNT2-30-BL	Black Satin Finish		warm white	3000k	275		82	$67.95
DI-1224V-TRNT2-50-BL	Black Satin Finish		cool white	5000k	348		74	$67.95
DI-1224V-TRNT2-30-WH	White Satin Finish		warm white	3000k	275		82	$67.95
DI-1224V-TRNT2-50-WH	White Satin Finish		cool white	5000k	348		74	$67.95

CLICK IMAGE for COMPLETE SELECTION and DETAILS

POWER SUPPLIES and CONTROLS

Plug-In Adapters

Hard-Wired
Non-Dimmable Drivers

Hard-Wired
Dimmable Drivers

12V and 24V
DRIVER / DIMMER

REIGN
In-Wall Controls

In-Line Controls

Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.

Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.

Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch

SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.

REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.

Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
