DIODE LED FENCER™ SELECT
Under Cabinet LED Light Fixtures
Saber Select/ Foil Select - Choose from 3000K, 3500K or 4000K in each Fixture
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Card Discover Networks Solutions Secure
The FENCER fixture represents a new generation of under cabinet lighting for kitchens and task lighting. This high quality, ultra bright fixture connects directly to 120V AC electrical currents and is compatible with select wall dimmers (see specifications). The 8”, 12”, 18”, 24”, and 32” length options can be linked seamlessly together or configured with extension cables for a completely customizable installation. With dimmability, style, and accommodating length options, the FENCER Series is one of the most versatile direct-line under cabinet LED light fixtures on the market. Now available in 98 CRI Model and 98 CRI Premium Diffuser Model which Eliminates Hot Spots.

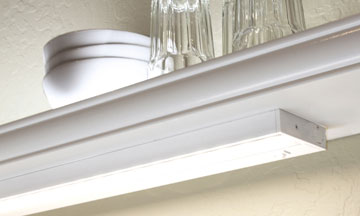

Saber Select
SABER™ SELECT: The traditional wide design is equipped with a single On/Off switch per fixture.
Each SABER SELECT Fixture comes with:
• Selectable Color Temperature: 3000K, 3500K or 4000K
• Multiple knockouts for Non-Metallic Building Wire w/ 1 - Connector
• Linkable End-To-End Connector
• Captive screws for mounting with Screw Covers
• Available in White or Bronze
Installation Note: The SABER Fixture can be hard-wired
through integrated knockouts.
Foil Select
FOIL™ SELECT: A compact and modern design with an optional accessory junction box featuring an On/Off switch.
Each FOIL SELECT Fixture comes with:
• Selectable Color Temperature: 3000K, 3500K or 4000K
• 72" Direct Connect Power Cord
• 2x mounting clips (with 90º adjustibility)
• Linkable End-To-End Connector
• Available in White
Installation Note: Power cable not included. See product
accessories for the appropriate power connection.
Click Button for FENCER SABER SELECT PDF Installation Guide PDF Installation Guide
Click Button for FENCER FOIL SELECT PDF Installation Guide PDF Installation Guide
Click Button for FENCER SABER SELECT PREMIUM DIFFUSION LED PDF Specifications FENCER PD LED PDF Specifications
Click Button for FENCER FOIL SELECT PREMIUM DIFFUSION LED PDF Specifications FENCER LED PDF Specifications
Click Button for Full 5 Year
Warranty Information		 Diode LED Warranty

SABER FOIL SABER and FOIL
FIXTURE ACCESSORIES
BACK to TOP

ALL DIMENSIONS in INCHES
SABER SELECT
DI-1302-8-WH-30 DI-1302-8-BZ-30 DI-1302-12-WH-30 DI-1302-12-BZ-30 DI-1302-18-WH-30 DI-1302-18-BZ-30 DI-1302-24-WH-30 DI-1302-24-BZ-30 DI-1302-32-WH-30 DI-1302-32-BZ-30
CLICK IMAGE BELOW for LARGER VIEW
Saber Select
SABER™ SELECT: The traditional wide design is equipped with a single On/Off switch per fixture.
Each SABER SELECT Fixture comes with:
• Selectable Color Temperature: 3000K, 3500K or 4000K
• Multiple knockouts for Non-Metallic Building Wire w/ 1 - Connector
• Linkable End-To-End Connector
• Captive screws for mounting with Screw Covers
• Available in White
• Input Voltage: 120V AC • Dimmable: With compatible forward phase and reverse phase dimmers
• Color Temperature: Selectable • Color Rendering Index (CRI): 90+
• Premium Diffuser Eliminates Hot Spots - CRI: 90+
• Maximum Run: 40 Fixtures • Rated Lamp Life: 50,000 hours
• LED Chip Type: Osram Sylvania • LED Spacing: 1.5" between centers
Click for Compatible Dimmers Compatible Dimmers
FENCER SABER OCCUPANCY SENSOR
DI-120V-SABER-MS-WH DI-120V-SABER-MS-BZ
Save energy usage with your FENCER Series SABER™ Under Cabinet Fixtures with this advanced occupancy sensor from Diode LED. The sensor is sensitive to heat emitted by the human body and tracks the source of heat from one zone of detection to another to activate the On/Off switch inside.
DI-120V-SABER-MS-WH White 178.20
CLICK for PDF Specifications
SABER Occupancy Sensor Specifications
CLICK for PDF Instructions
PDF Installation Guide
COLOR TEMPERATURE SELECTABLE / PREMIUM DIFFUSER / 90+ CRI MODEL
FENCER® SABER™ SELECT PREMIUM Diffusion Under Cabinet LED Fixtures incorporate a unique design with premium diffusion lens to create an uninterrupted linear light output, that totally eliminates the traditional “hot spots” of most LED array fixtures. It boasts a 98+ Color Rendering Index (CRI) that delivers exceptional color rendering, enhancing colors, patterns and natural details with a vibrant, flawless color representation.
ITEM FINISH Length x Width
x Height		 Selectable Color
Temperature		 LUMENS POWER
CONSUMPTION		 # OF
LEDS		 PRICE
DI-120V-SBRSEL-08-WH White 8.4 x 2.8
x 1.0		 3000K 374 6.0W 12 $63.90
3500K 418
4000K 403
DI-120V-SBRSEL-16-WH White 16.4 x 2.8
x 1.0		 3000K 610 9.6W 24 $72.90
3500K 683
4000K 676
DI-120V-SBRSEL-24-WH White 24.4 x 2.8
x 1.0		 3000K 890 14.0W 36 $86.40
3500K 981
4000K 981
DI-120V-SBRSEL-32-WH White 32.4 x 2.8
x 1.0		 3000K 1162 19.2W 48 $98.10
3500K 1263
4000K 1244
CLICK any ICON Below for Full Explanation:
ETL California Title 24 Energy Star
ETL CERTIFIED CALIFORNIA TITLE 24 ENERGY STAR
BACK to TOP

SABER
DI-1302-8-WH-30 DI-1302-8-BZ-30 DI-1302-12-WH-30 DI-1302-12-BZ-30 DI-1302-18-WH-30 DI-1302-18-BZ-30 DI-1302-24-WH-30 DI-1302-24-BZ-30 DI-1302-32-WH-30 DI-1302-32-BZ-30
CLICK IMAGE BELOW for LARGER VIEW
DI-1302-8-WH-30 DI-1302-8-BZ-30 DI-1302-12-WH-30 DI-1302-12-BZ-30 DI-1302-18-WH-30 DI-1302-18-BZ-30 DI-1302-24-WH-30 DI-1302-24-BZ-30 DI-1302-32-WH-30 DI-1302-32-BZ-30
SABER™ : The traditional wide design is equipped with a single On/Off switch per fixture. Each SABER Fixture comes with:
• Multiple knockouts for Non-Metallic Building Wire w/ 1 - Connector
• Linkable End-To-End Connector
• Captive screws for mounting with Screw Covers
• Available in White or Bronze
• Input Voltage: 120V AC • Dimmable: With compatible forward phase and reverse phase dimmers
• Color Temperature: 3000K - Warm White • Color Rendering Index (CRI): 98
• Premium Diffuser Eliminates Hot Spots - CRI: 98
• Maximum Run: 40 Fixtures • Rated Lamp Life: 50,000 hours
• LED Chip Type: Osram Sylvania • LED Spacing: 1.5" between centers
Click for Compatible Dimmers Compatible Dimmers
FENCER SABER OCCUPANCY SENSOR
DI-120V-SABER-MS-WH DI-120V-SABER-MS-BZ
Save energy usage with your FENCER Series SABER™ Under Cabinet Fixtures with this advanced occupancy sensor from Diode LED. The sensor is sensitive to heat emitted by the human body and tracks the source of heat from one zone of detection to another to activate the On/Off switch inside.
DI-120V-SABER-MS-WH White 178.20
CLICK for PDF Specifications
SABER Occupancy Sensor Specifications
CLICK for PDF Instructions
PDF Installation Guide
PREMIUM DIFFUSER / 90+ CRI MODEL
FENCER® SABER™ Premium Diffusion Under Cabinet LED Fixtures provide exceptional color rendering and evenly distributed light in an easy-to-install direct wire fixture. The premium diffusion lens was designed to eliminate hot spots from the LED chips and creates an even light output on high-gloss finishes like glass, mirrors, and granite. At 98 CRI, colors pop, textures stand out, and finishes have depth and luster. FENCER SABER fixtures provide bright, even light output up to 100 feet. field-selectable CCTs: 2700K, 3000K, 3500K, 4000K, and 5000K. Available in WHITE ONLY.
ITEM FINISH Length x Width
x Height		 Color
Temperature		 LUMENS POWER
CONS.		 CRI PRICE
DI-120V-SABER-08 White 8.00 x 3..55
x 0.98		 Built-In
Adjustability

2700K

3000K

3500K

4000K

5000K 		2700K - 256
3000K - 265
3500K - 270
4000K - 279
5000K - 280		 5.0W 90+ $63.90
DI-120V-SABER-14 14.00 x 3..55
x 0.98		 2700K - 498
3000K - 516
3500K - 516
4000K - 541
5000K - 547		 9.0W $72.90
DI-120V-SABER-22 22.00 x 3..55
x 0.98		 2700K - 624
3000K - 637
3500K - 628
4000K - 667
5000K - 672		 11.0W $86.40
DI-120V-SABER-33 33.00 x 3..55
x 0.98		 2700K - 879
3000K - 890
3500K - 867
4000K - 942
5000K - 954		 16.0W $98.10
CLICK any ICON Below for Full Explanation:
ETL California Title 24 Energy Star
ETL CERTIFIED CALIFORNIA TITLE 24 ENERGY STAR
BACK to TOPBACK to TOP

CLICK IMAGE for LARGER VIEW
SABER AND FOIL FIXTURE ACCESSORIES
DI-1305 DI-1306 DI-13xx DI-1311 DI-1312
DI-1305 DI-1306 DI-0270 DI-1311 DI-1312
Junction Box
with On / Off Switch		 End-To-End
Connector		 Extension
Cable		 72" Power Cable
with AC Plug		 72" Power Cable with Hard Wire Connection
In configuration with the FOIL Fixtures, the Junction Box can act as a direct line hub as well as offering a built-in On/Off switch for your installation. Hard-wire only.
Seamlessly connects two sections of any length fixture together.
Perfect for jumping around gaps and obstructions in the installation or
negotiating angles of any degree.
Connects any 2 Bar-120V AC Plug-to-fixture connector cable-Bar extension cables.
120V AC Splice-to-fixture connector cable.
White White White White White
6.25” x 3.62” x 0.96” 0.8” x 0.67” x 0.44” x” x 0.66” x 0.42” 72“ x 0.66” x 0.42” 72“ x 0.66” x 0.42”
$37.80 $9.90
DI-1307 6"
$9.90
DI-1308 12"
11.70
DI-1309 24"
$13.50
DI-1310 72"
$17.10
$17.10 $13.50
