DIODE LED GRAZE X™ Linear Grazing Custom Built LED Fixture - Graze Textured Walls, Architectural Accents, or Anything Else You want to Illuminate. Crisp Performance with 10º, 30º or 60º Beam Spreads with VALENT X™ or RGB-W Light Engines

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

440-715-5539

WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US

These Cards Accepted and PROCESSED SECURELY				CLIOCK CATALOG BUTTON for COMPLETE SELECTION

Contemporary architectural design often features linear light, increasingly as the primary light source. Beam control and shaping of light is important to allow for nuanced lighting design. As linear LED technology advanced and adoption increased, expectations also increased for the optical performance of linear light. The discreet form factor of low-voltage linear light has always been one of its major appeals. Now, optical performance is the new focus.

Available Summer 2022

GRAZE X IS Custom Built to Your Specifications by Diode LED in Reno, NV

Contact US for Your GRAZE X Custom Built Fixture
800-844-3267	ILLUMENATE@ME.COM

GRAZER IMAGES

GRAZER OPTICS

HOW to SPECIFY YOUR GRAZE FIXTURE

CLICK IMAGE for LARGER VIEW

GRAZE FIXTURE

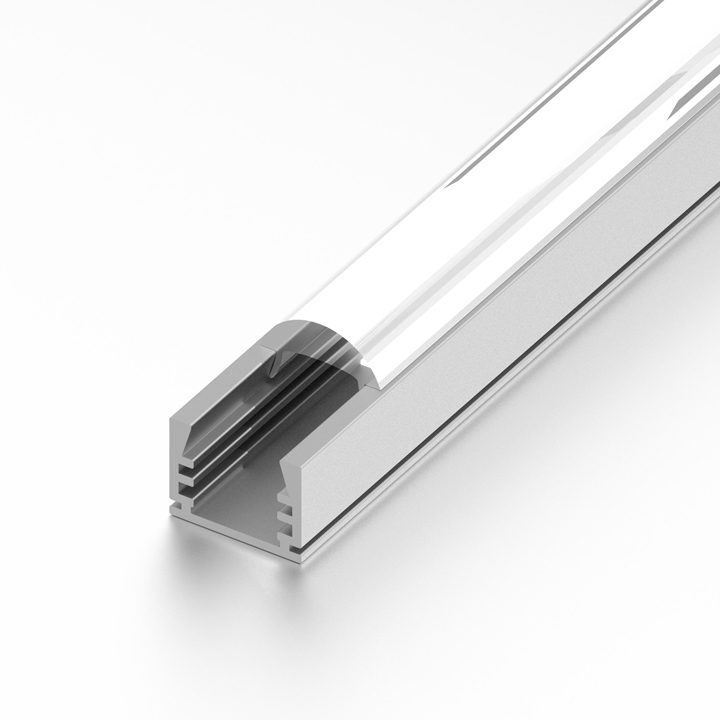

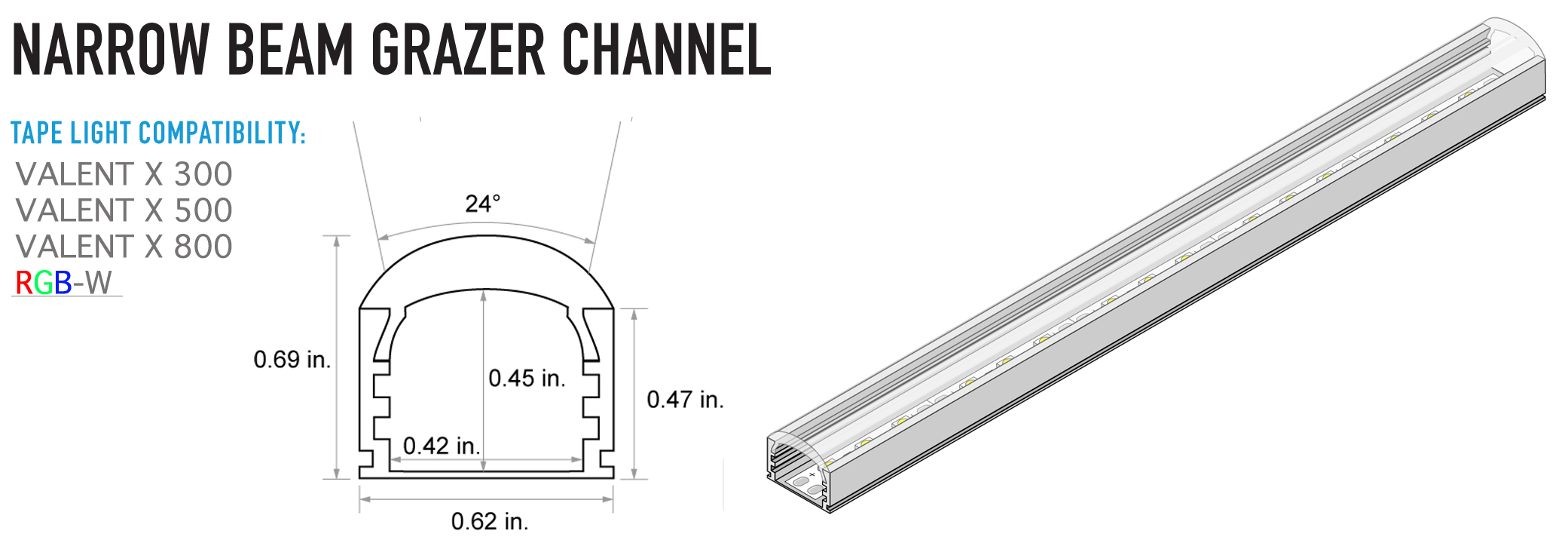

NARROW BEAM GRAZER CHANNEL

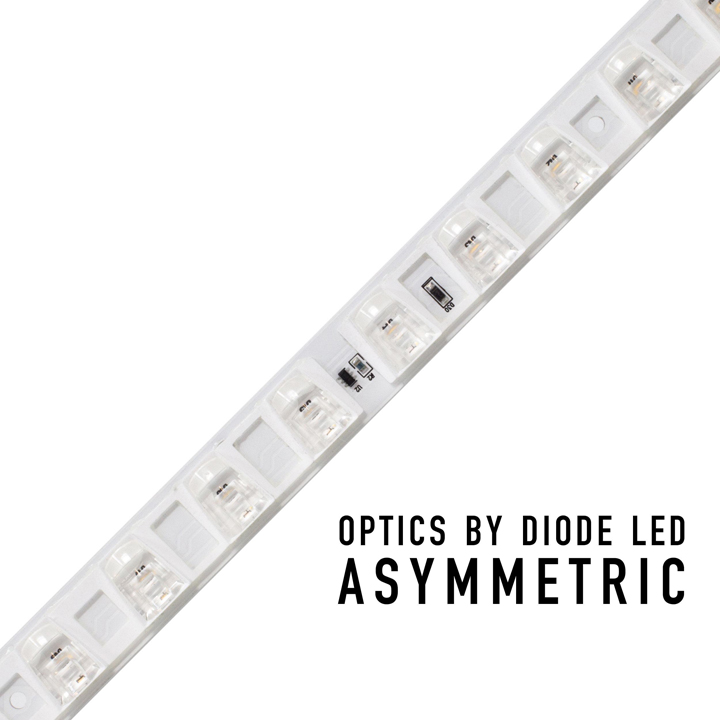

ASSYMMETRIC
LIGHT ENGINE

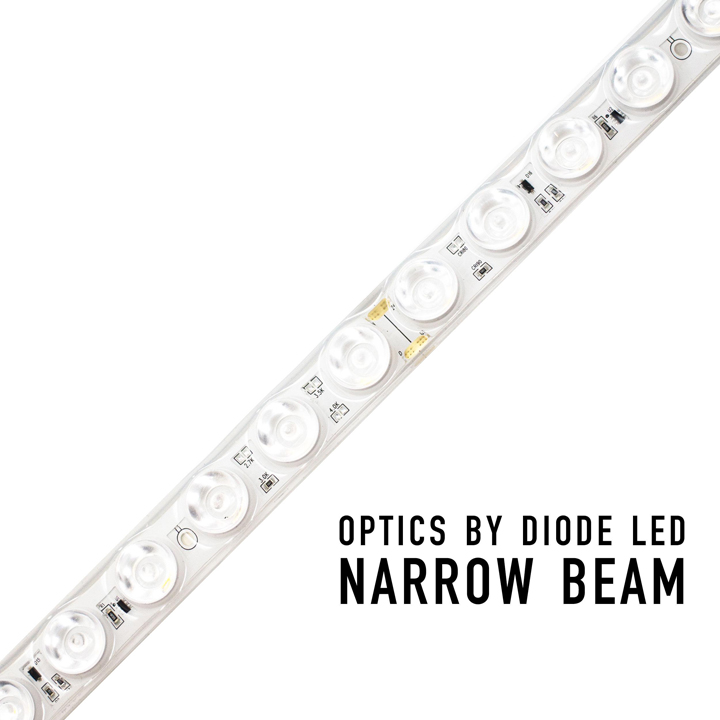

NARROW BEAM
LIGHT ENGINE

GRAZE RGB-W
LIGHT ENGINE

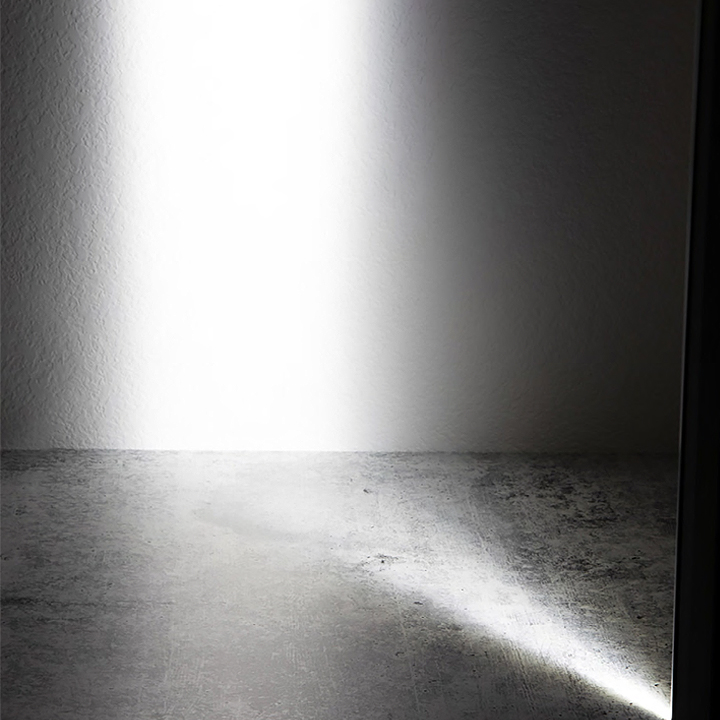

in APPLICATION

CUSTOM
ASSEMBLY

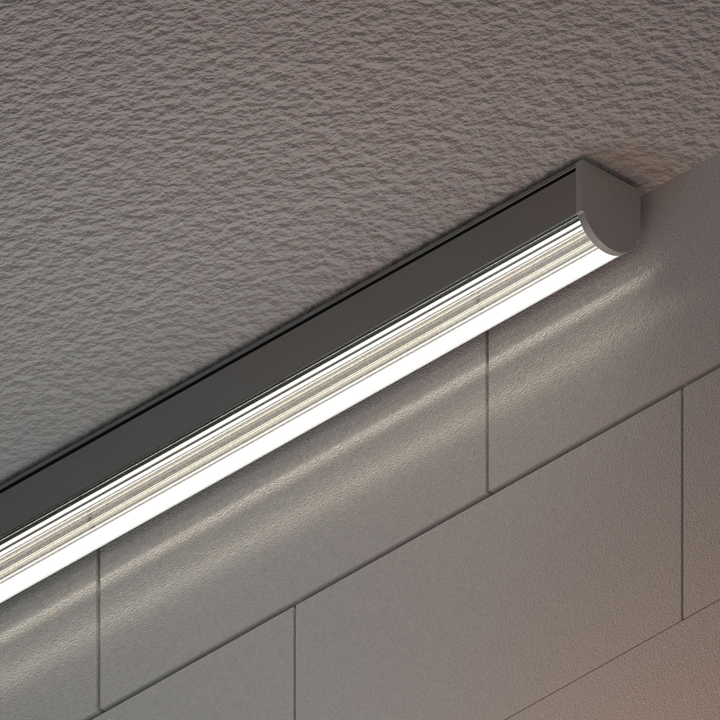

GRAZE FIXTURE
INSTALLED

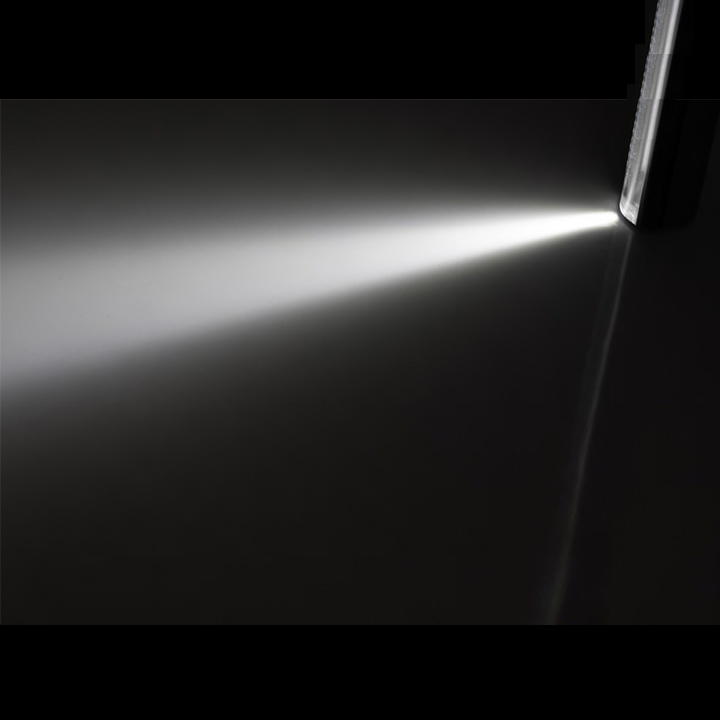

GRAZE BEAM SPREADS

BACK to TOP

Diode LED's new patented CelTECH™ technology is a fixture design that creates a clean, precise beam by collimating light immediately after it leaves the light engine, which also increases overall efficiency of the fixture and requires less materials. This results in a beam with an exceptional aesthetic, delivered from a physically compact, modular fixture that can be manufactured domestically at a reasonable cost.

.

CLICK any ICON Below for Full Explanation:

UL
LISTED

24V DC

NO
120V AC

Indoor or
Outdoor

Dimmable

Color
Changing

• Crisp optical performance with 10°, 30° or 60° beam angles and near-zero glare

• CCT options from 2400K - 6300K and RGB-W

• Built to length in 1" increments, daisy-chain capable for long runs

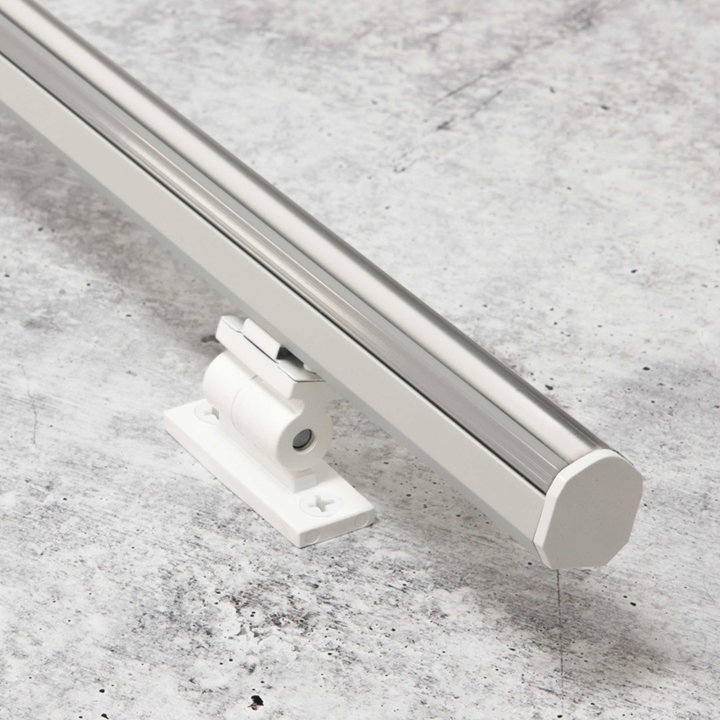

• Rotating aiming bracket or flat mounting clip

• CRI, hue & gamut matched to VALENT® X tape light

• 12 year warranty

Click Button for PDF GRAZE FIXTURE Installation Guide - COMING SOON

Click Button for GRAZE FIXTURE PDF Specifications

Click Button for GRAZE FIXTURE RGB-W PDF Specifications

Click Button for Full 12 Year
Warranty Information

COLOR TEMPERATURE ILLUSTRATION

BACK to TOP

GRAZE FIXTURES ARE CUSTOM BUILT to YOUR Specifications

ORDERING CODES
Diode LED	VOLTAGE	MODEL	CCT		SERIES	FINISH	LENS	MOUNTING	LENGTH
DI	24V	GRZX	24 (2400K)	42 (4200K)	VALENT X 300	AL (ALUMINUM)	10°	MC (MOUNTING CLIP)	LENGTH (INCHES)
			27 (2700K)	50 (5000K)	VALENT X 500	WH (WHITE)	30°	AIM (AIMING BRACKET)
			30 (3000K)	60 (6000K)	VALENT X 800	BL (BLACK)	60°
			35 (3500K)	RGB-W	RGB-W
EXAMPLE:	DI-24V-500-24-16-GRZX30-AIM-WH48 -SWITCHEX (ALL-in-ONE DRIVER / DIMMER -

Driver and Controller OPTIONS BELOW

BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS

POWER SUPPLIES and CONTROLS

MAGNETIC and ELECTRONIC
DIMMABLE DRIVERS

12V and 24V
DRIVER / DIMMER

COLOR
CONTOLLERS

Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.

SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.

C Chose from a Wide Range of Color Controls
